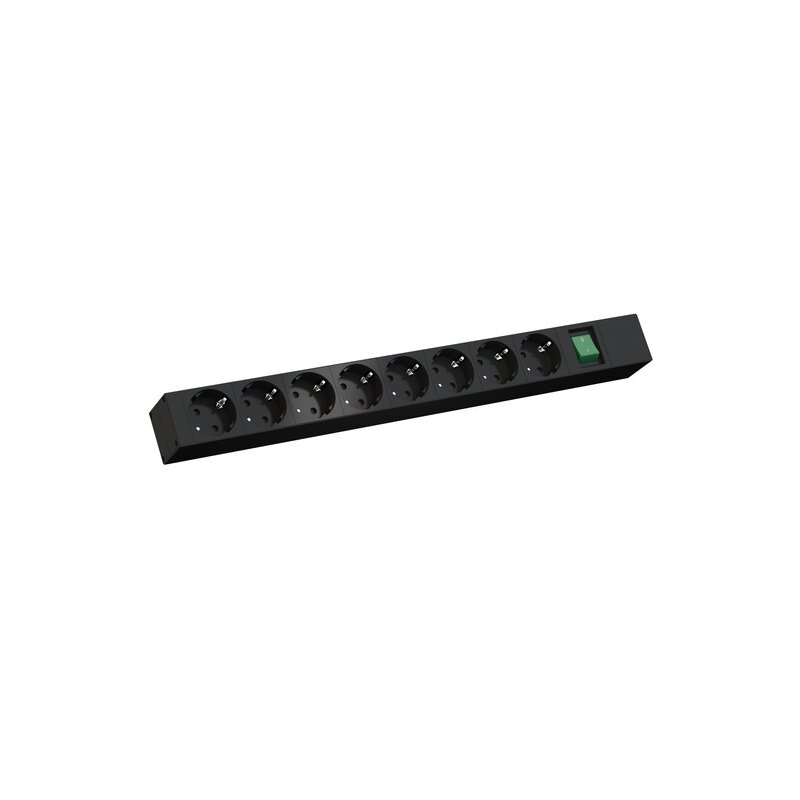

H198SE, 19" Power Distribution Unit, 1U, D-Series Basic, 8x CEE 7/3 socket outlets; 1x switch, with CEE 7/3 angled plug; supply cable: 2.0 m H05VV-F 3G1.5 mm²
Newlec / Bachmann
Product number: 801.0014
Product information "H198SE, 19" Power Distribution Unit, 1U, D-Series Basic, 8x CEE 7/3 socket outlets; 1x switch, with CEE 7/3 angled plug; supply cable: 2.0 m H05VV-F 3G1.5 mm²"
19" Power Distribution Unit, 1U, D-Series Basic, 8x Type F Schuko socket outlets
- 1 x switch
- with Schuko angled plug (45°)
- supply cable: 2.0 m
- 8 x Schuko socket outlets
- H05VV-F 3G1.5 mm²
- 19" mounting brackets included separately
Overview
Manufactured by Bachmann GmbH for Rexel Germany GmbH & Co. KG
| Specifications | |
|---|---|
| Country of origin | China |
| Customs tariff number | 85444290 |
| Conductor cross-section | 1.5 mm² |
| Number of CEE 7/3 protective contact socket outlets, Type F | 8 |
| Angle | 45° |
| On/off switch | 1 |
| Colour | black |
| Supply cable length | 2 m |
| Rated current | 16 A |
| Protection rating | IP20 |
| Material | plastic |
| Surge protection | no |
| Residual current device, RCD | no |
| Mains interference filter | no |
| Suitable for 482.6 mm, 19-inch rack installation | yes |
| Accessories | 19" mounting brackets included separately |
