Mounts for Cisco Access Points

€99.90 - DISCOUNT WILL BE DEDUCED IN THE CART This test kit contains all our Cisco access point mounts to get to know them - at a reduced price compared to buying them individually! Only one Cisco access point installation test kit can be ordered per customer at the discounted price. Included are: Horizontal wall mount v2 for Cisco access points Combined mount for Cisco Access Points and Patch Antenna Industrial light ceiling Bracket for Cisco Access Points This set provides you with a practical solution for various installation scenarios - ideal for professional network technology and installations.

Made in Hamburg/Germany The combined mount for Cisco Access Points and patch antennas enables space-saving installation of Cisco Access Points with external patch antennas on walls or ceilings. The antenna is attached to the front of the mount and – together with the front section – can be tilted approx. ±15° to ±30° up or down depending on the access point in use. This saves space and installation time, as only a single mount is required for both AP and antenna. Material and color match our wall mounts: 1 mm zinc-plated steel, powder-coated, standard color white (RAL 9010); other colors are available upon request. Details Compatibility – Supported Cisco AP series: from AP1040 (approx. 2009). – Antenna: Cisco AIR-ANT2566P4W-R and antennas with identical mounting hole dimensions. – Not compatible with Cisco Meraki. Mechanics & Dimensions – Dimensions of the mount: W 290 mm × H 265.5 mm × D 120 mm. – Note: height and depth may vary depending on angle and AP model. – Tilt (front/antenna): depending on AP approx. ±15° to ±30°. – Mounting points: wall/ceiling installation with up to 6 screws; typically 3 screws provide secure support (see image). – Cable management: not obstructed; all edges are deburred and therefore cable-friendly. Material & Finish – 1 mm zinc-plated steel, powder-coated; standard color white (RAL 9010). – Other colors are available on request after prior consultation. These material and color specifications match our other mounts and ensure a consistent appearance. Installation & Use – Installation on walls or ceilings; front section with antenna is tiltable (see tilt range). – The mount is designed for indoor use (according to the approved APs/antennas used). Important Notes – Before installation, verify the AP series and the mounting hole dimensions of the patch antenna used. – Cisco Meraki is not supported. – For color options other than RAL 9010, please contact us in advance by e-mail. Advantages at a Glance Combined installation for Cisco AP and patch antenna – saves space and installation time Tiltable front with antenna: depending on AP approx. ±15° to ±30° Clean cable management thanks to deburred edges Stable wall/ceiling installation (up to 6 screws; typically 3 are sufficient) 1 mm zinc-plated steel, powder-coated, standard color RAL 9010, other colors on request Technical Overview Feature Description Note Ensure antenna compatibility via mounting hole dimensions; Meraki models are excluded. Product Combined mount for Cisco Access Points and patch antenna (CM-APANT-C-3) Compatible APs Cisco from AP1040 (approx. 2009) Compatible antennas Cisco AIR-ANT2566P4W-R and antennas with identical mounting hole dimensions Incompatibility Not compatible with Cisco Meraki Dimensions (mount) W 290 mm × H 265.5 mm × D 120 mm (H/D depending on angle & AP) Tilt range (front) Depending on AP approx. ±15° to ±30° Material / finish 1 mm zinc-plated steel, powder-coated; standard color white (RAL 9010) Color options Other colors available after prior consultation Installation Wall/ceiling; up to 6 screws possible, typically 3 screws sufficient Cable management Unobstructed; deburred edges protect cables Scope of delivery Front and rear mounts (CM-APANT-C-3), 2× M6 screws, 2× wing screws, 4× M4 antenna screws Use case Indoor use (according to approved APs/antennas) Conclusion The combined mount consolidates AP and patch antenna installation into a single solution, saving space and time while offering flexible alignment via the tiltable front. With clearly defined compatibility and a robust RAL 9010 finish, it is a precise, practical indoor mounting solution. Scope of Delivery Front mount (CM-APANT-C-3) Rear mount (CM-APANT-C-3) 2× M6 screw 2× wing screw for fixing 4× M4 screw for antenna installation Downloads Datenblatt (DE)   datasheet (EN)

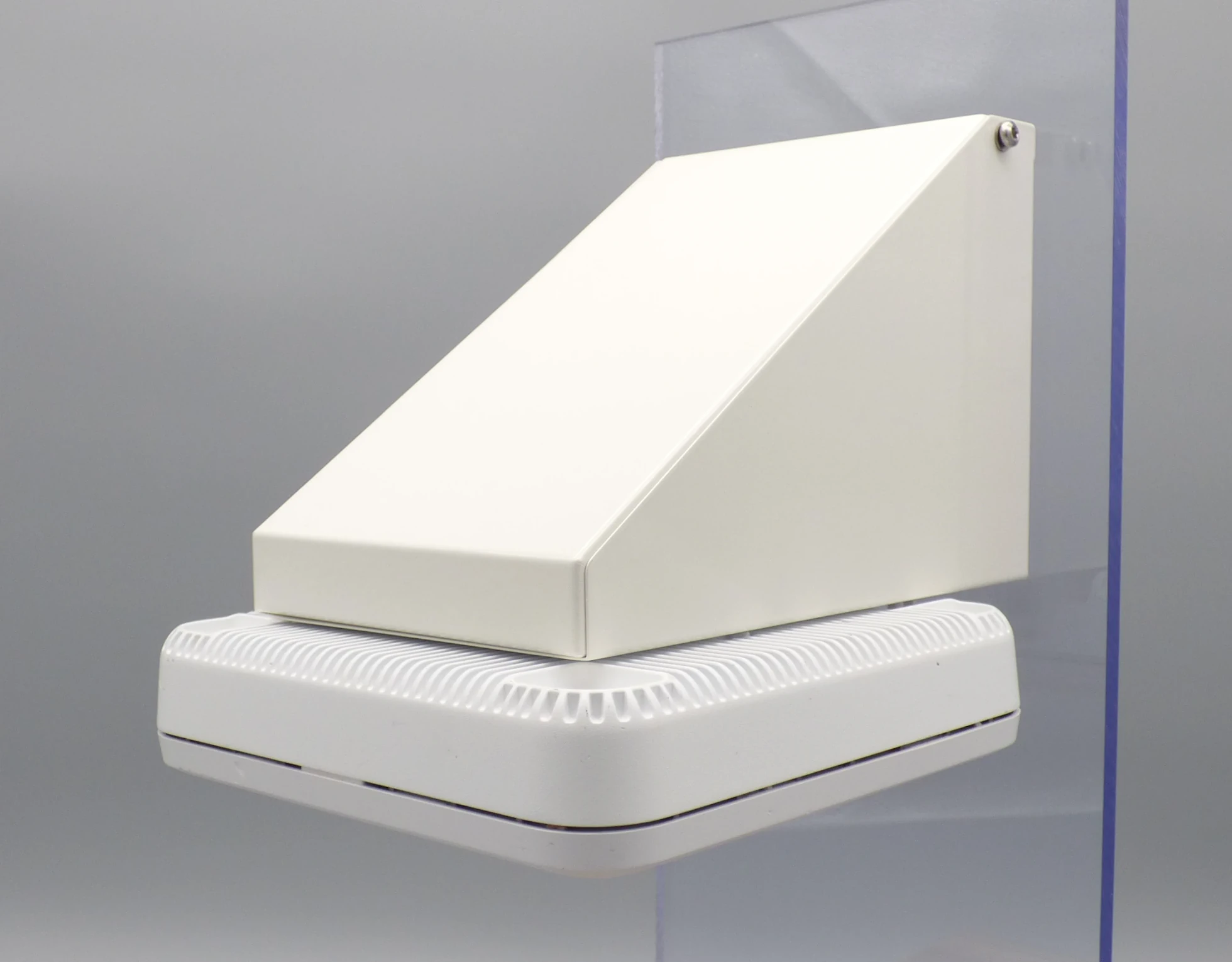

Made in Hamburg/Germany The Horizontal Wall Mount V3 for Cisco Access Points is a robust, precisely engineered solution for horizontal wall installation of enterprise access points. The revised V3 design uses an accurate mounting pattern for fast, secure installation while providing a clean, professional appearance in offices, schools, hotels and industrial environments. The improved Version 3 mount features precisely positioned mounting holes that match Cisco’s original layout exactly. This alignment enables effortless installation, as the mount fits seamlessly into existing mounting points. Because of this compatibility, the mount can be swapped in place of the original hardware without additional adjustments. This saves installation time and cost when replacing existing mounts. Details The mount allows flat, horizontally oriented wall installation of the access point. This preserves the antenna characteristics and ensures predictable, reproducible RF coverage. Its solid, powder-coated metal chassis is built for long-term use and supports fast device replacement without special tools. Benefits & Features Version 3: optimized, precise mounting pattern for enterprise APs Horizontal wall installation for predictable RF coverage Durable metal construction (powder-coated) for continuous operation Fast installation: mount the base, insert the AP, close the cover Clean appearance – ideal for visible and public areas Compatibility Cisco (excluding Meraki): compatible with all current and past Cisco Enterprise Access Points using the standard mounting pattern (including older series such as 3800/3700/3600/3500/2800/2700/2600/1600/1260/1140/1040 as well as newer generations). Juniper / Mist: compatible with current and previous Mist Access Points using the matching hole pattern (e.g. AP34, AP41, AP43, AP45 and newer models). Aruba: compatible with the 500, 600 and 700 series when used with the Arubadaptor V2 or Arubadaptor QC. Note: Meraki models are not compatible. Use Cases Wi-Fi installations in offices, hospitals, schools, hotels and more Upgrades and conversions to horizontal wall mounting Uniform appearance in visible and representative areas Technical Notes Mounting type: horizontal wall mount Material: metal, powder-coated Color: white (RAL 9010); additional colors available on request With the CM-WALL-C-3, you are choosing a durable, installation-friendly mount that positions enterprise access points securely and elegantly on the wall—compatible with Cisco (excluding Meraki), Juniper/Mist, and with adapter support also for Aruba. Scope of Delivery Lower mount (CM-WALL-C-3) Upper cover mount (CM-WALL-C-3) Downloads Datenblatt (DE)   datasheet (EN)

Made in Hamburg/Germany The ideal bracket for mounting Cisco access points on industrial and grid ceilings, cable ducts, cable trays, suspended grid ceilings, etc., in which the bracket can be simply hooked in and fixed with the wing screws. Drilling is not necessary. Compatible Cisco Access Points: AP3800 AP3700 AP3600 AP3500 AP2800 AP2700 AP2600 AP1600 AP1260 AP1140 AP1040 In addition to this system, we also offer other brackets. We manufacture these ourselves and can also offer larger quantities at short notice. Available colours: white (RAL9010) If you require a different colour, please contact us by email. With white or another colour, the bracket is fully powder-coated and therefore very scratch and impact resistant. Contents of Delivery:: 1* Bracket (CM-IND-C-1) 2* Wing Screws M5 Access points not included.
