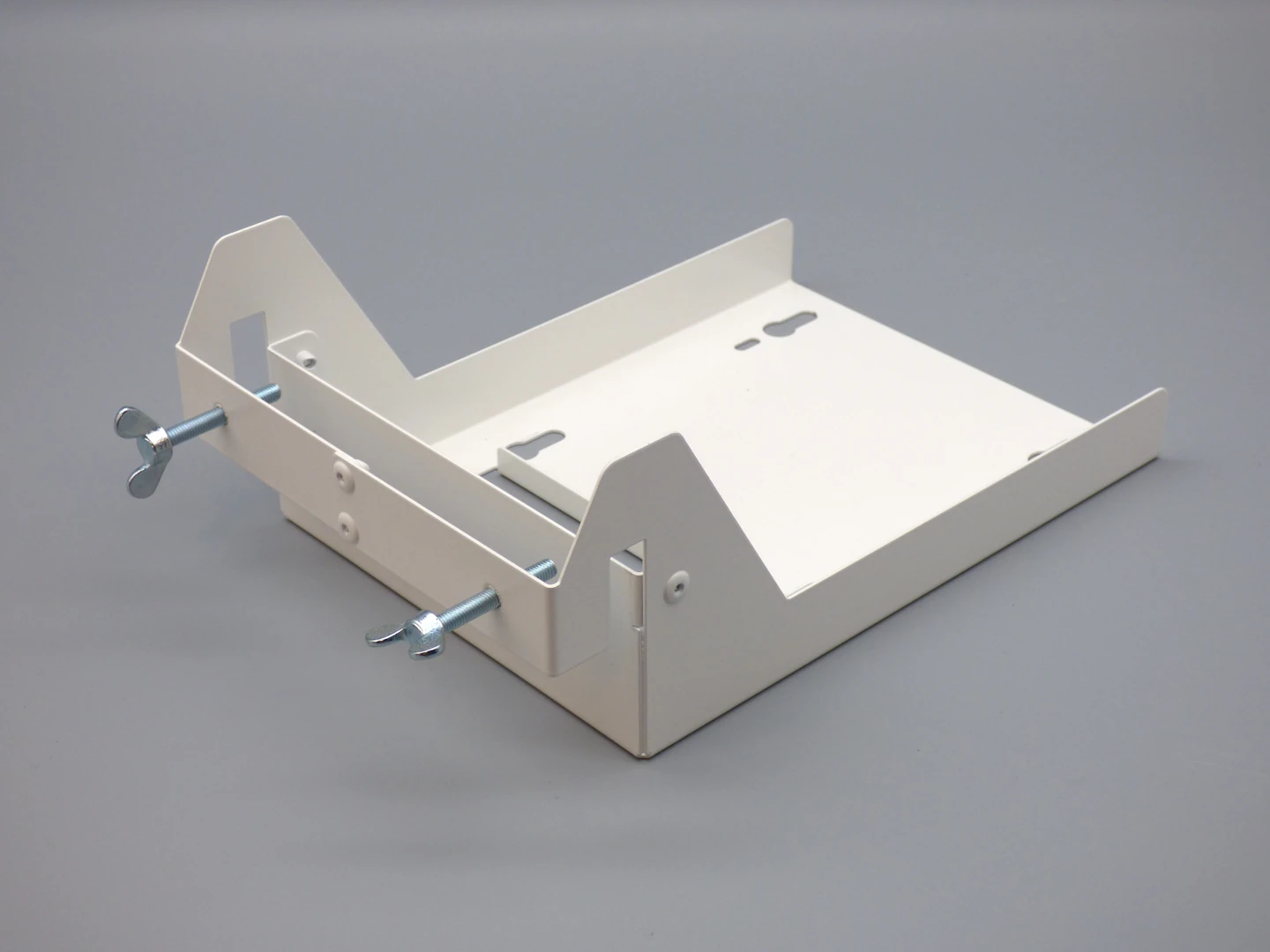

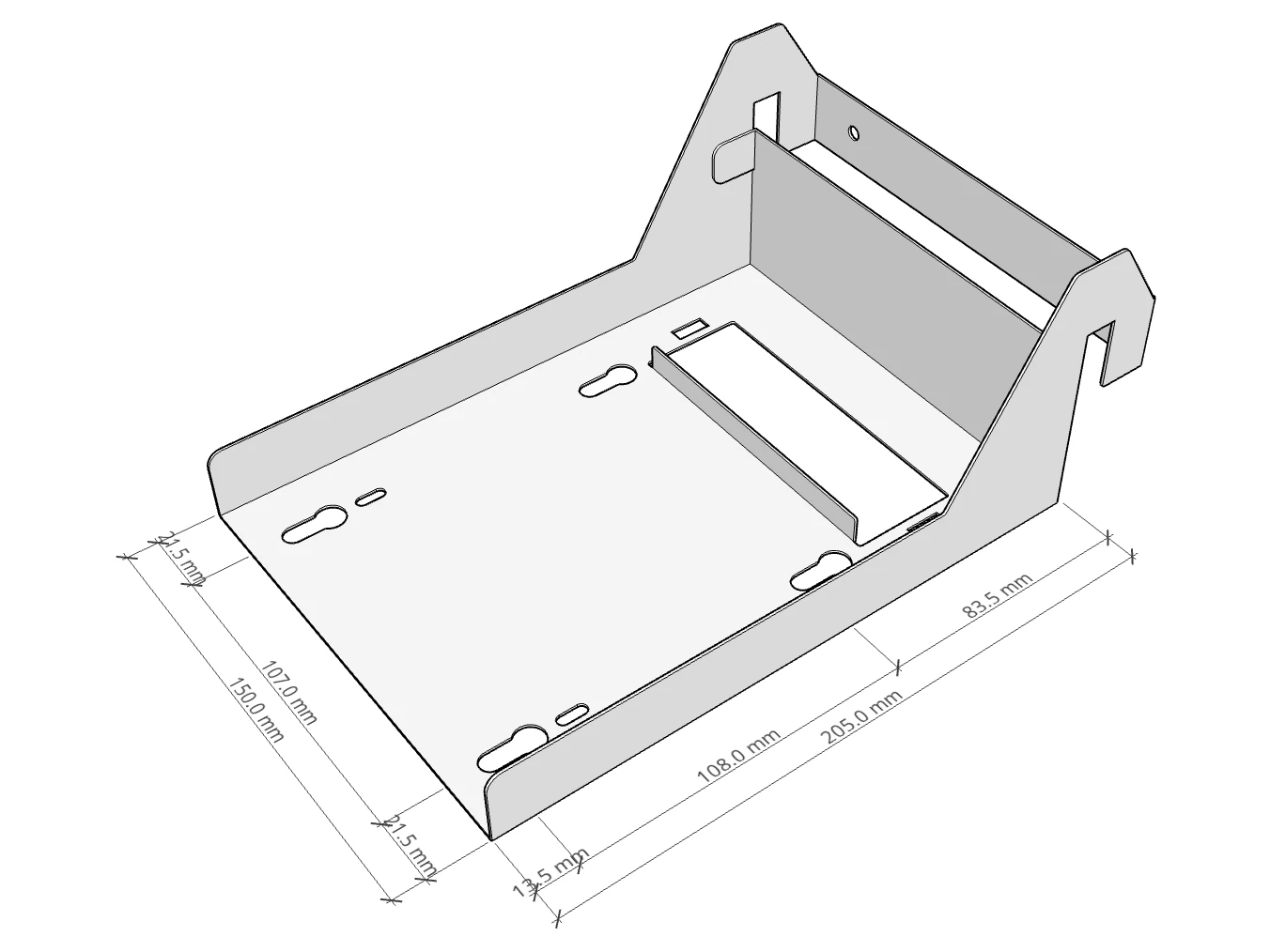

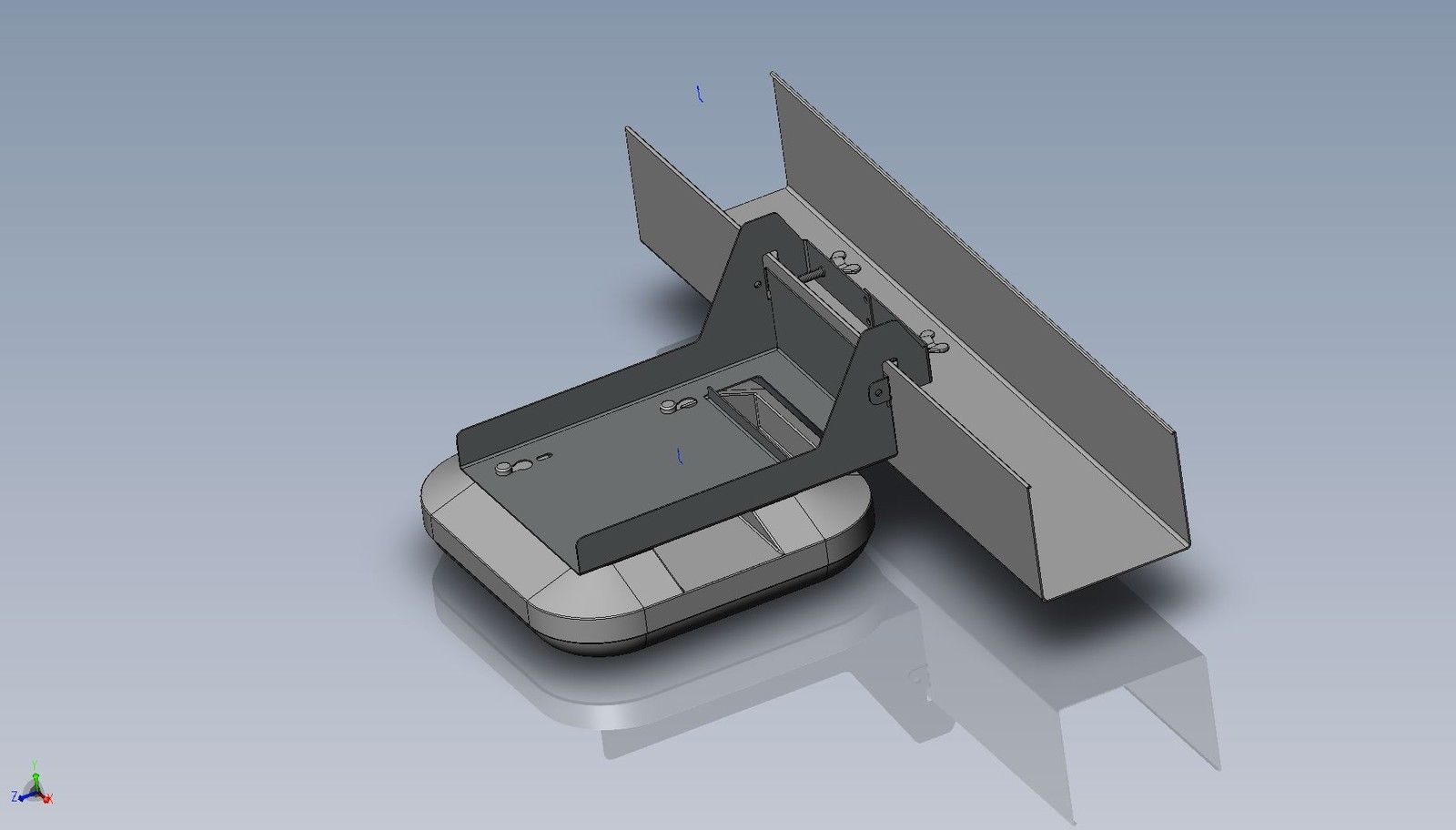

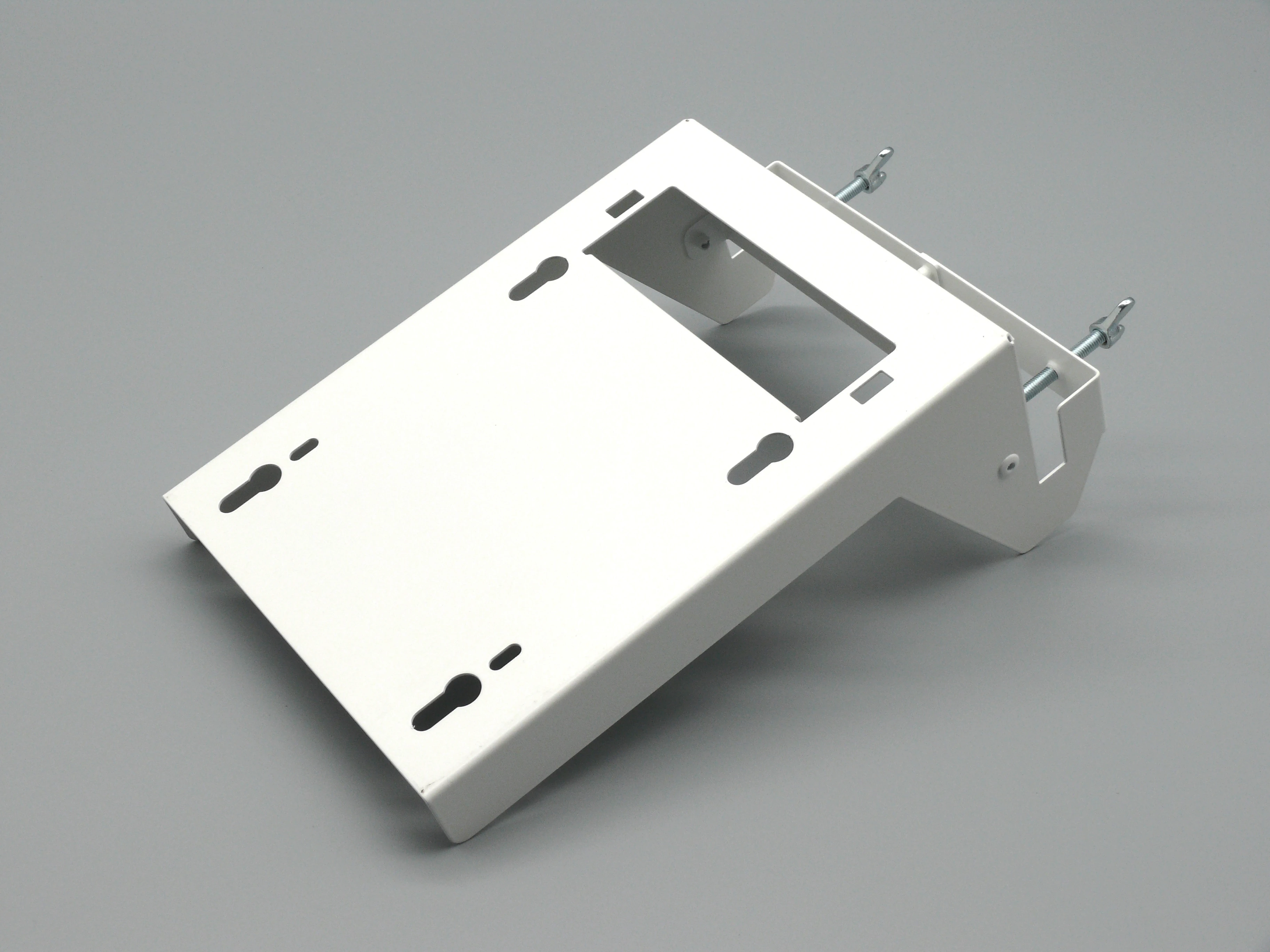

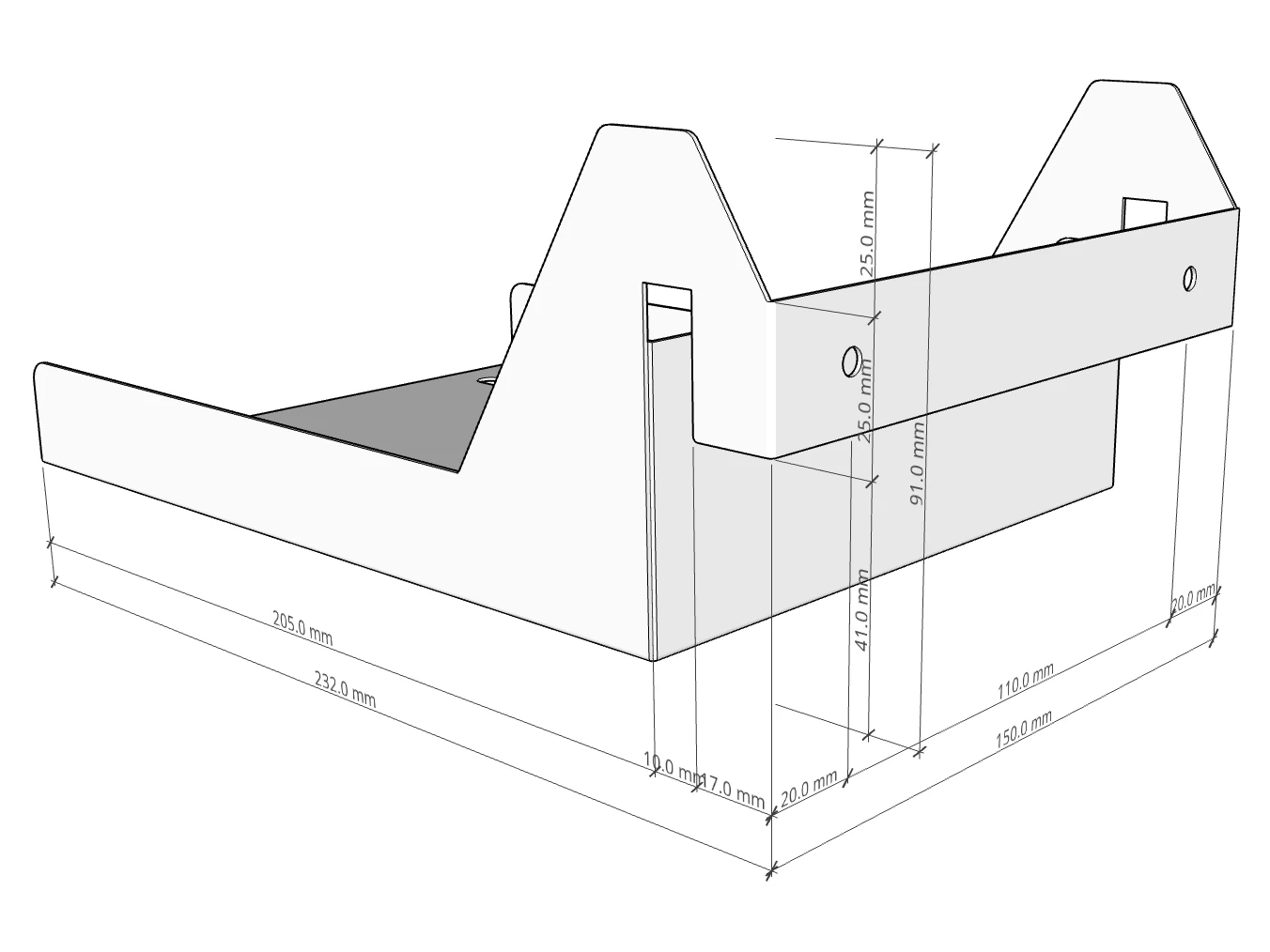

Industrial light ceiling Bracket for Juniper Mist Access Points

Made in Hamburg/Germany The combined mount for Aruba Access Points and patch antennas enables space-saving installation of Aruba Access Points with external patch antennas on walls or ceilings. The antenna is attached to the front section and – together with the front – can be tilted approx. ±15° to ±30° up or down depending on the access point in use. This saves both space and installation time, as only one mount is required for both AP and antenna. Material and color match our other indoor mounts: 1 mm zinc-plated steel, powder-coated, standard color white (RAL 9010); additional colors available upon request. The Aruba Access Point is connected to the mount using the included Arubadaptor. Cable management remains unobstructed: all edges are deburred to protect cables. For wall or ceiling installation, up to six screw points are available; typically, three screws provide sufficient support. Details Compatibility – Supported Aruba AP series: 500, 600, 700. – Supported patch antennas: AP-ANT-25A, AP-ANT-28, AP-ANT-35A, AP-ANT-38, AP-ANT-45, AP-ANT-48 as well as newer antennas with identical mounting hole dimensions. – AP attachment is done using the Arubadaptor (included). Mechanics & Dimensions – Dimensions of the mount: W 290 mm × H 280 mm × D 121 mm. – Note: Height and depth vary depending on the tilt angle and AP model. – Tilt range (front/antenna): depending on AP, approx. ±15° to ±30°. – Mounting points: wall/ceiling with up to 6 screws; typically 3 screws are sufficient. – Cable management: unobstructed; deburred edges protect cables. Material & Finish – 1 mm zinc-plated steel, powder-coated. – Standard color white (RAL 9010); other colors available on request. These material and color specifications match our other mounts for a consistent visual appearance. Installation & Use – Installation on walls or ceilings; the front section with antenna is tiltable (see tilt range). – Designed for indoor use. Important Notes – Before installation, verify the AP series and mounting hole dimensions of the patch antenna. – Use the Arubadaptor to connect the AP to the mount. Advantages at a Glance Combined installation of Aruba AP and patch antenna – saves space and installation time Tiltable front with antenna: depending on AP approx. ±15° to ±30° Clean cable management thanks to deburred edges Stable wall/ceiling installation (up to 6 screws; typically 3 are sufficient) 1 mm zinc-plated steel, powder-coated; standard color RAL 9010, other colors on request Technical Overview Feature Description Note Ensure antenna compatibility via mounting hole dimensions; AP installation requires the included Arubadaptor. Product Combined mount for Aruba Access Points and patch antennas (CM-APANT-A-3) Compatible AP series Aruba 500, 600, 700 series Compatible antennas AP-ANT-25A, AP-ANT-28, AP-ANT-35A, AP-ANT-38, AP-ANT-45, AP-ANT-48 and newer models with identical mounting hole dimensions Dimensions (mount) W 290 mm × H 280 mm × D 121 mm (H/D depend on tilt angle & AP) Tilt range (front) Depending on AP approx. ±15° to ±30° Material / finish 1 mm zinc-plated steel, powder-coated; standard color white (RAL 9010), other colors on request Installation Wall/ceiling; up to 6 screws, typically 3 screws sufficient Cable management Unobstructed; deburred edges protect cables AP attachment Using the included Arubadaptor Use case Indoor use (according to AP/antenna approvals) Scope of delivery Front & rear mounts (CM-APANT-A-3), 2× M6 screws, 2× wing screws, 4× M4 screws for antenna, Arubadaptor Conclusion The combined mount for Aruba consolidates AP and patch antenna installation into a single solution, saving space and time while offering flexible alignment thanks to the tiltable front. With clearly defined compatibility, the included Arubadaptor and a robust RAL 9010 finish, it provides a precise, practical indoor mounting solution. Scope of Delivery – Front mount (CM-APANT-A-3) – Rear mount (CM-APANT-A-3) – 2× M6 screw – 2× wing screw for fixing – 4× M4 screw for antenna installation – Arubadaptor Downloads datasheet DE

Made in Hamburg/Germany The combined mount for Cisco Access Points and patch antennas enables space-saving installation of Cisco Access Points with external patch antennas on walls or ceilings. The antenna is attached to the front of the mount and – together with the front section – can be tilted approx. ±15° to ±30° up or down depending on the access point in use. This saves space and installation time, as only a single mount is required for both AP and antenna. Material and color match our wall mounts: 1 mm zinc-plated steel, powder-coated, standard color white (RAL 9010); other colors are available upon request. Details Compatibility – Supported Cisco AP series: from AP1040 (approx. 2009). – Antenna: Cisco AIR-ANT2566P4W-R and antennas with identical mounting hole dimensions. – Not compatible with Cisco Meraki. Mechanics & Dimensions – Dimensions of the mount: W 290 mm × H 265.5 mm × D 120 mm. – Note: height and depth may vary depending on angle and AP model. – Tilt (front/antenna): depending on AP approx. ±15° to ±30°. – Mounting points: wall/ceiling installation with up to 6 screws; typically 3 screws provide secure support (see image). – Cable management: not obstructed; all edges are deburred and therefore cable-friendly. Material & Finish – 1 mm zinc-plated steel, powder-coated; standard color white (RAL 9010). – Other colors are available on request after prior consultation. These material and color specifications match our other mounts and ensure a consistent appearance. Installation & Use – Installation on walls or ceilings; front section with antenna is tiltable (see tilt range). – The mount is designed for indoor use (according to the approved APs/antennas used). Important Notes – Before installation, verify the AP series and the mounting hole dimensions of the patch antenna used. – Cisco Meraki is not supported. – For color options other than RAL 9010, please contact us in advance by e-mail. Advantages at a Glance Combined installation for Cisco AP and patch antenna – saves space and installation time Tiltable front with antenna: depending on AP approx. ±15° to ±30° Clean cable management thanks to deburred edges Stable wall/ceiling installation (up to 6 screws; typically 3 are sufficient) 1 mm zinc-plated steel, powder-coated, standard color RAL 9010, other colors on request Technical Overview Feature Description Note Ensure antenna compatibility via mounting hole dimensions; Meraki models are excluded. Product Combined mount for Cisco Access Points and patch antenna (CM-APANT-C-3) Compatible APs Cisco from AP1040 (approx. 2009) Compatible antennas Cisco AIR-ANT2566P4W-R and antennas with identical mounting hole dimensions Incompatibility Not compatible with Cisco Meraki Dimensions (mount) W 290 mm × H 265.5 mm × D 120 mm (H/D depending on angle & AP) Tilt range (front) Depending on AP approx. ±15° to ±30° Material / finish 1 mm zinc-plated steel, powder-coated; standard color white (RAL 9010) Color options Other colors available after prior consultation Installation Wall/ceiling; up to 6 screws possible, typically 3 screws sufficient Cable management Unobstructed; deburred edges protect cables Scope of delivery Front and rear mounts (CM-APANT-C-3), 2× M6 screws, 2× wing screws, 4× M4 antenna screws Use case Indoor use (according to approved APs/antennas) Conclusion The combined mount consolidates AP and patch antenna installation into a single solution, saving space and time while offering flexible alignment via the tiltable front. With clearly defined compatibility and a robust RAL 9010 finish, it is a precise, practical indoor mounting solution. Scope of Delivery Front mount (CM-APANT-C-3) Rear mount (CM-APANT-C-3) 2× M6 screw 2× wing screw for fixing 4× M4 screw for antenna installation Downloads datasheet DE
