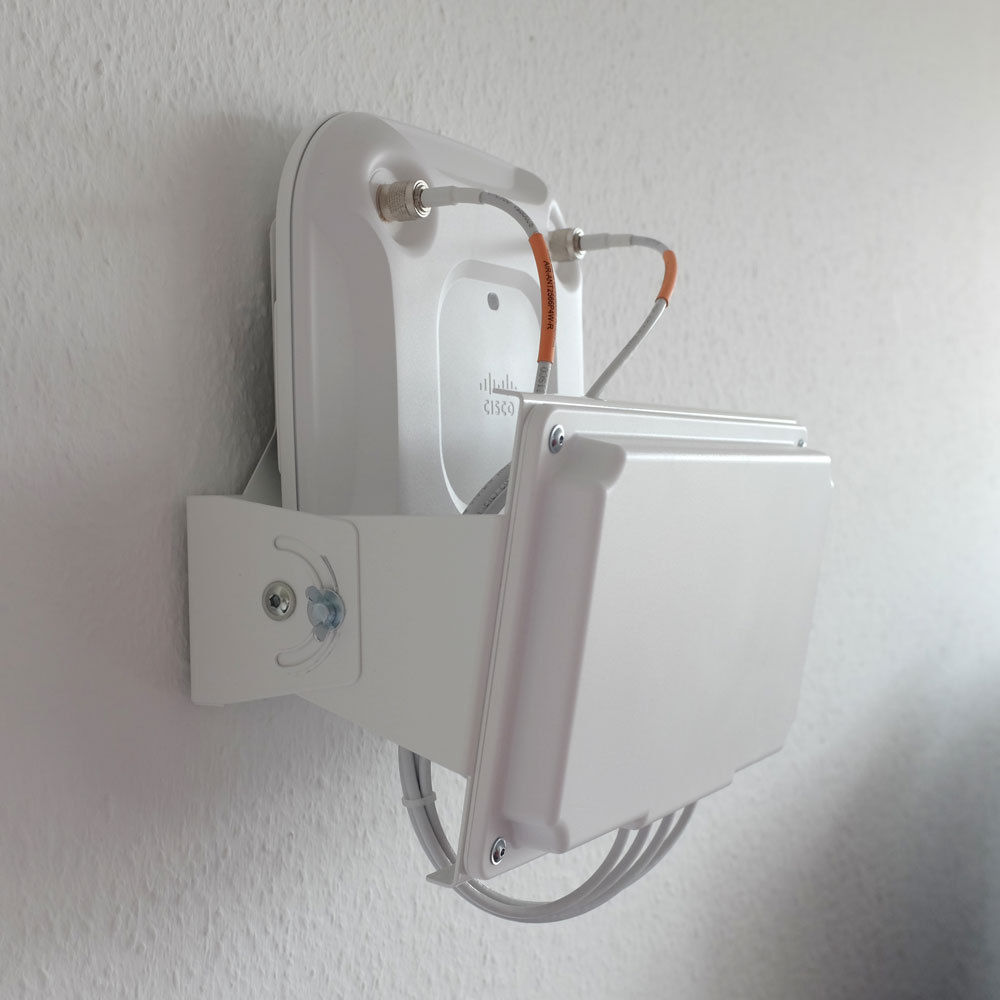

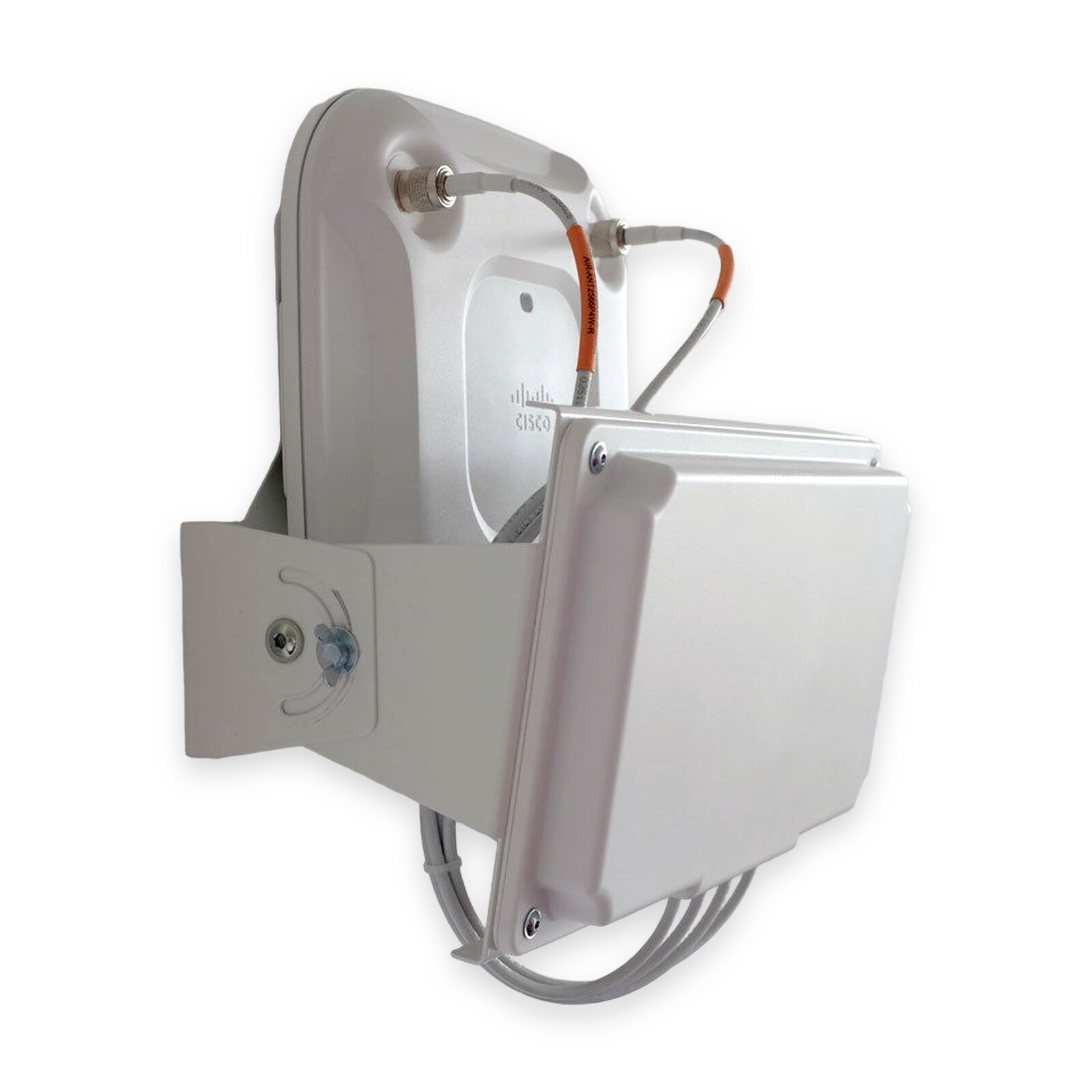

Made in Hamburg/Germany The combined mount for Cisco Access Points and patch antennas enables space-saving installation of Cisco Access Points with external patch antennas on walls or ceilings. The antenna is attached to the front of the mount and – together with the front section – can be tilted approx. ±15° to ±30° up or down depending on the access point in use. This saves space and installation time, as only a single mount is required for both AP and antenna. Material and color match our wall mounts: 1 mm zinc-plated steel, powder-coated, standard color white (RAL 9010); other colors are available upon request. Details Compatibility – Supported Cisco AP series: from AP1040 (approx. 2009). – Antenna: Cisco AIR-ANT2566P4W-R and antennas with identical mounting hole dimensions. – Not compatible with Cisco Meraki. Mechanics & Dimensions – Dimensions of the mount: W 290 mm × H 265.5 mm × D 120 mm. – Note: height and depth may vary depending on angle and AP model. – Tilt (front/antenna): depending on AP approx. ±15° to ±30°. – Mounting points: wall/ceiling installation with up to 6 screws; typically 3 screws provide secure support (see image). – Cable management: not obstructed; all edges are deburred and therefore cable-friendly. Material & Finish – 1 mm zinc-plated steel, powder-coated; standard color white (RAL 9010). – Other colors are available on request after prior consultation. These material and color specifications match our other mounts and ensure a consistent appearance. Installation & Use – Installation on walls or ceilings; front section with antenna is tiltable (see tilt range). – The mount is designed for indoor use (according to the approved APs/antennas used). Important Notes – Before installation, verify the AP series and the mounting hole dimensions of the patch antenna used. – Cisco Meraki is not supported. – For color options other than RAL 9010, please contact us in advance by e-mail. Advantages at a Glance Combined installation for Cisco AP and patch antenna – saves space and installation time Tiltable front with antenna: depending on AP approx. ±15° to ±30° Clean cable management thanks to deburred edges Stable wall/ceiling installation (up to 6 screws; typically 3 are sufficient) 1 mm zinc-plated steel, powder-coated, standard color RAL 9010, other colors on request Technical Overview Feature Description Note Ensure antenna compatibility via mounting hole dimensions; Meraki models are excluded. Product Combined mount for Cisco Access Points and patch antenna (CM-APANT-C-3) Compatible APs Cisco from AP1040 (approx. 2009) Compatible antennas Cisco AIR-ANT2566P4W-R and antennas with identical mounting hole dimensions Incompatibility Not compatible with Cisco Meraki Dimensions (mount) W 290 mm × H 265.5 mm × D 120 mm (H/D depending on angle & AP) Tilt range (front) Depending on AP approx. ±15° to ±30° Material / finish 1 mm zinc-plated steel, powder-coated; standard color white (RAL 9010) Color options Other colors available after prior consultation Installation Wall/ceiling; up to 6 screws possible, typically 3 screws sufficient Cable management Unobstructed; deburred edges protect cables Scope of delivery Front and rear mounts (CM-APANT-C-3), 2× M6 screws, 2× wing screws, 4× M4 antenna screws Use case Indoor use (according to approved APs/antennas) Conclusion The combined mount consolidates AP and patch antenna installation into a single solution, saving space and time while offering flexible alignment via the tiltable front. With clearly defined compatibility and a robust RAL 9010 finish, it is a precise, practical indoor mounting solution. Scope of Delivery Front mount (CM-APANT-C-3) Rear mount (CM-APANT-C-3) 2× M6 screw 2× wing screw for fixing 4× M4 screw for antenna installation Downloads datasheet DE

Made in Hamburg/Germany The ideal bracket for mounting Cisco access points on industrial and grid ceilings, cable ducts, cable trays, suspended grid ceilings, etc., in which the bracket can be simply hooked in and fixed with the wing screws. Drilling is not necessary. Compatible Cisco Access Points: AP3800 AP3700 AP3600 AP3500 AP2800 AP2700 AP2600 AP1600 AP1260 AP1140 AP1040 In addition to this system, we also offer other brackets. We manufacture these ourselves and can also offer larger quantities at short notice. Available colours: white (RAL9010) If you require a different colour, please contact us by email. With white or another colour, the bracket is fully powder-coated and therefore very scratch and impact resistant. Contents of Delivery:: 1* Bracket (CM-IND-C-1) 2* Wing Screws M5 Access points not included.

Made in Hamburg/Germany The ideal bracket for mounting Juniper Mist access points on industrial and grid ceilings, cable ducts, cable trays, suspended grid ceilings, etc., in which the bracket can be simply hooked in and fixed with the wing screws. Drilling is not necessary. Compatible with the following Juniper/Mist Access Points: AP45 AP43 AP41 AP34 Compatible Cisco Access Points: AP3800 AP3700 AP3600 AP3500 AP2800 AP2700 AP2600 AP1600 AP1260 AP1140 AP1040 In addition to this system, we also offer other brackets. We manufacture these ourselves and can also offer larger quantities at short notice. Available colours: white (RAL9010) If you require a different colour, please contact us by email. With white or another colour, the bracket is fully powder-coated and therefore very scratch and impact resistant. Contents of Delivery:: 1* Bracket (CM-IND-JM-1) 2* Wing Screws M5 Access points not included.

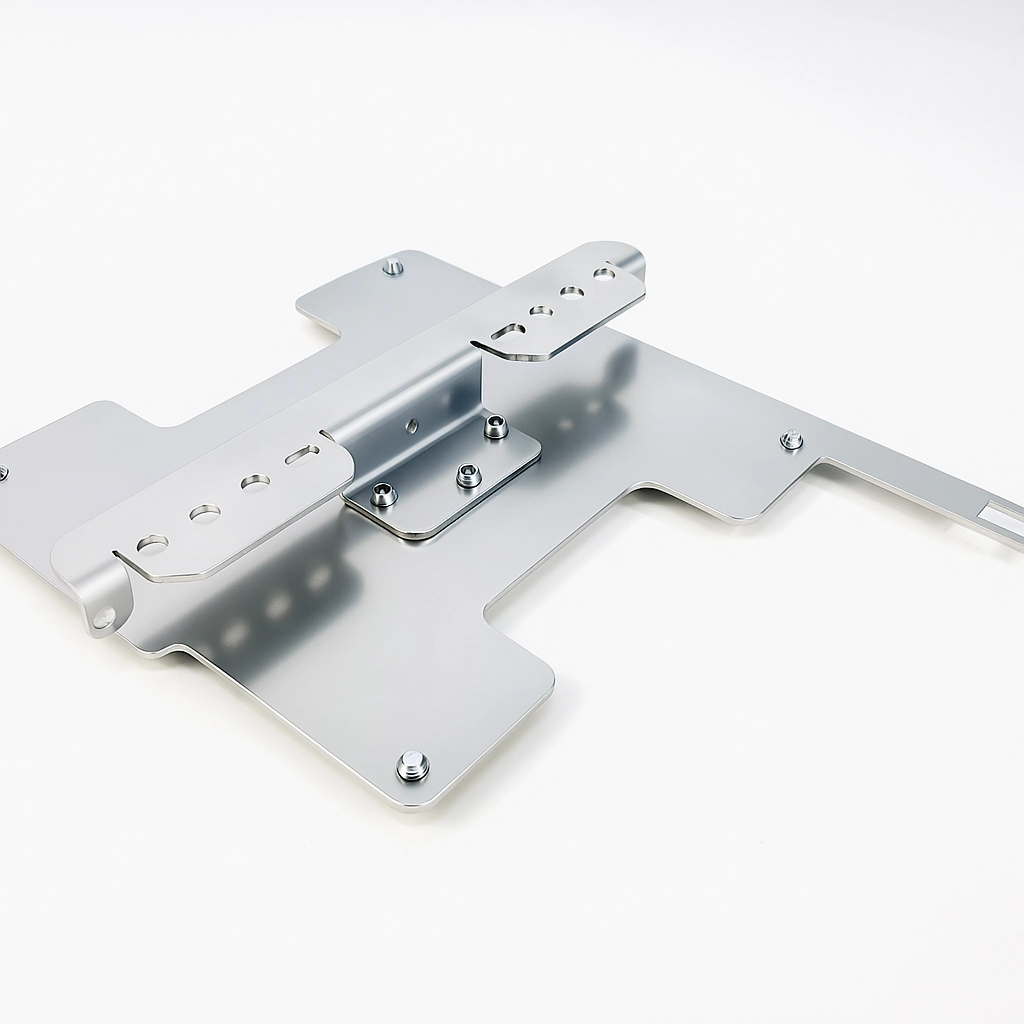

Made in Hamburg/Germany The Cisco to Aruba Adapter “Arubadaptor QC” is the practical hardware solution for continuing to use existing Cisco ceiling and wall mounts while installing new Aruba Access Points without drilling, patching or painting. The adapter bridges the mechanical differences between both manufacturers and enables fast upgrades in offices, schools, hospitals, hotels, retail spaces and logistics environments. Instead of dismantling old mounts and installing new ones, the Arubadaptor QC is placed onto the existing Cisco mount, after which the Aruba AP can be mounted directly – cleanly, securely and usually without downtime. This saves project time, costs and unnecessary coordination, as dust, noise and additional trades are largely avoided. Manufactured from durable stainless steel and Made in Hamburg/Germany, the Cisco to Aruba Adapter “Arubadaptor QC” is designed for longevity, serviceability and high repeatability. The hole pattern supports typical Cisco mounts starting from the AP1040 series (approx. 2009), while the Aruba side supports the 500, 600 and 700 series. All ports (PoE/Ethernet/Console) remain freely accessible, serial/MAC labels stay visible, and installation takes only a few minutes with the included screws. The result is a mechanically clean, audit-proof migration path from Cisco to Aruba – without compromising stability or appearance. Details Use Cases and Added Value In many existing buildings, dozens or hundreds of Cisco mounts are already installed, labelled and integrated into cable routes. Installing new mounts means dismantling, patching, painting, dust protection, coordination with users and potentially downtime. The Arubadaptor QC eliminates this effort by reusing the existing base plate so that only the access point itself needs to be replaced. This is particularly advantageous in sensitive environments – such as operating areas, classrooms, hotel corridors, retail spaces during opening hours, or dust-critical production zones. The consistent reuse of existing mounts saves time, reduces risks and protects budgets, making migrations more predictable and cost-effective. Material and Workmanship The adapter is made of corrosion-resistant stainless steel with precisely manufactured hole patterns and deburred edges. The material withstands frequent installation/removal, resists everyday mechanical influences (e.g., vibration from HVAC systems or tension on patch cables) and maintains dimensional stability. Its surface blends discreetly into ceiling and wall environments while remaining robust enough for technical rooms, storage areas or high-traffic corridors. The result is a long-lasting component that can still be installed without play even after years, providing a reliable foundation for service-friendly AP locations. Compatibility and Future-Proofing The Arubadaptor QC is designed for common Cisco mounts (from AP1040, approx. 2009). This covers both legacy and current installations. In everyday project work, this means mixed environments can be migrated step by step, without needing to redesign each mounting point. Thanks to the mechanical focus, you remain independent of software versions or controller generations – the mechanical interface remains stable, protecting your investment long-term and simplifying future phased migrations. Ports, Labels and Service Access A common frustration with universal mounts is obstructed ports or hidden labels. With the Arubadaptor QC, special care was taken to ensure that Ethernet/PoE and console ports are easily accessible and that serial/MAC labels remain visible. Inventory, asset management, warranty handling and device replacement can therefore be done without removing the mount. This saves measurable time, especially in large rollouts and routine inspections, and ensures clean documentation at every installation point. Installation Process – Step by Step The installation follows a clear sequence: Remove the existing Cisco AP Insert the Arubadaptor QC tool-less into the existing Cisco mounting plate Mount the Aruba AP tool-less The Arubadaptor QC can be installed on site without tools. This workflow has proven itself in large rollouts, minimizes error sources and enables teams to upgrade many mounting points reliably within a single day. The result is a repeatable, efficient process that balances cleanliness, quality and speed. Aesthetics and Cable Management Especially in visible areas, a clean appearance matters. The adapter itself visually recedes into the background, resulting in a uniform and professional look. The combination of stainless-steel aesthetics and precise geometry ensures that the upgrade appears professional and integrates seamlessly into ceilings and walls. Cost Efficiency and Sustainability The greatest benefit of this solution lies in reusing existing infrastructure. No painting or patching, no new drill holes, fewer newly routed cables, less disposal work: this reduces direct costs and time, protects building structures and lowers environmental impact. Upgrades can also be carried out in phases without blocking large areas at once. This flexibility, combined with durable stainless steel, makes the Arubadaptor QC a sustainable choice across multiple device generations. Scope of Delivery and Logistics The delivery includes the Arubadaptor QC and the required screws. The Arubadaptor QC can be shipped to you or directly to your deployment site. On request, we can also ship in a white-label variant. Typical Application Areas Office and administrative buildings with Cisco legacy infrastructure and Aruba target environments Education (schools, universities) where low-noise, low-dust work is crucial Healthcare (clinics, practices) where hygiene and minimal downtime are essential Hospitality & retail, where appearance and availability are key Logistics/industry, where downtime is costly and installation time is limited These examples show that the adapter delivers measurable benefits in diverse environments and is therefore highly versatile. Advantages at a Glance Fast migration from Cisco to Aruba without new drill holes or dust exposure. Reuse of existing mounts → lower project costs and reduced downtime. Stainless steel, robust and durable – Made in Hamburg/Germany. Accessible ports and visible labels → service-friendly maintenance. Included screws, clear installation workflow → high repeatability. Broad compatibility with common Cisco and Aruba series. This list summarizes the key arguments and shows why the Arubadaptor QC provides significant relief during rollout, acceptance and ongoing operation. Technical Overview (Table) The following overview categorizes essential features, compatibilities and usage recommendations for the Arubadaptor QC Material / Origin Stainless steel / Made in Hamburg, Germany Purpose Reuse of Cisco mounts with Aruba Access Points (no new drill holes) Compatible Cisco Series From AP1040 (approx. 2009) Compatible Aruba Series 500 series, 600 series, 700 series Ports / Labels Free access to Ethernet/PoE/Console; serial & MAC labels visible Scope of Delivery Adapter incl. required screws (access points not included) Installation Directly onto the existing Cisco mount; AP can be mounted immediately Advantages Less dust/noise, reduced downtime, predictable large-scale upgrades Conclusion The Cisco to Aruba Adapter “Arubadaptor QC” is the pragmatic answer to enabling quick, clean and long-lasting reuse of existing Cisco mounts with Aruba APs. Robust, installation-friendly and service-oriented, it reduces effort, costs and downtime – turning a technology transition into a predictable routine. For projects of any size, it provides a valuable foundation for implementing migrations that are secure, economical and visually convincing. Antennas and access points are of course not included. Downloads datasheet (DE)

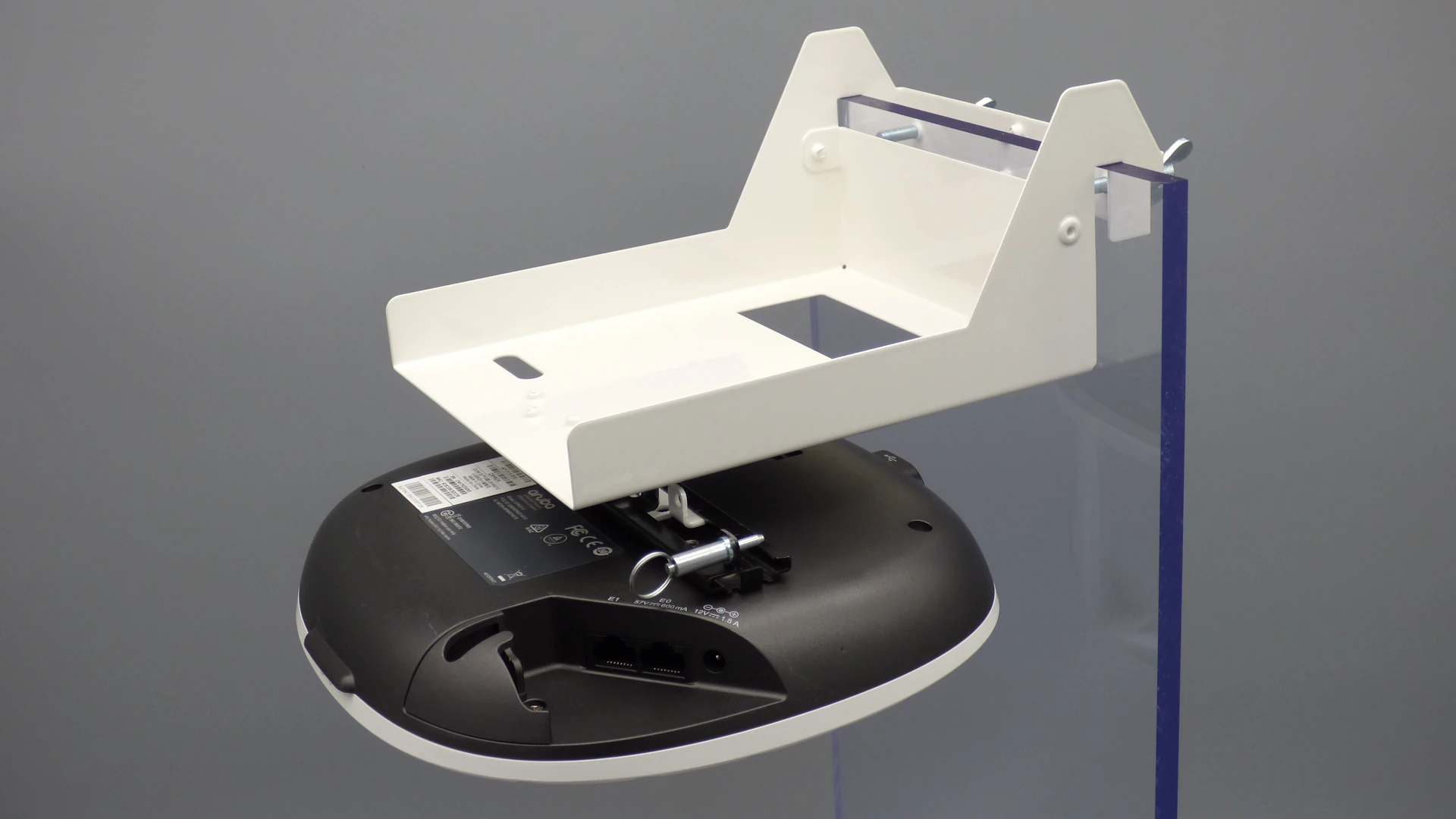

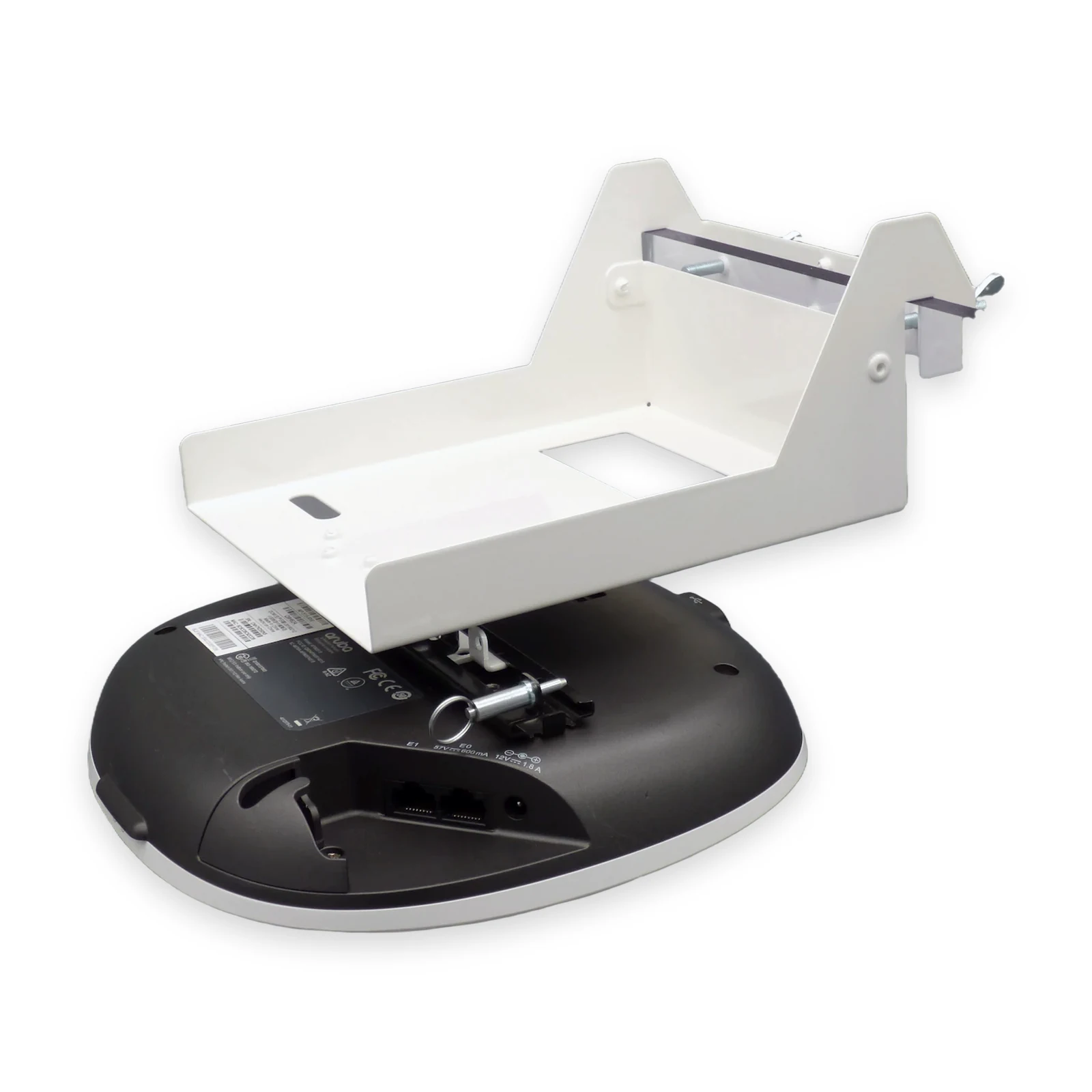

Made in Hamburg/Germany The ideal bracket for mounting Aruba access points on industrial & grid ceilings, cable ducts, cable trays, cable trays, suspended grid ceilings, etc., in which the bracket can be simply hooked in and fixed with the wing screws. Drilling is not necessary. Access points from the Aruba series are compatible: Series-500 Series-510 Series-530 Series-550 Series-610 Series-630 Series-650 In addition to this system, we also offer other brackets. We manufacture these ourselves and can also offer larger quantities at short notice. Available colours: white (RAL9010) If you require a different colour, please contact us by email. With white or another colour, the bracket is fully powder-coated and therefore very scratch and impact resistant. Package contents: 1* bracket (CM-IND-A-1) 2* M5 wing screws Access points not included.

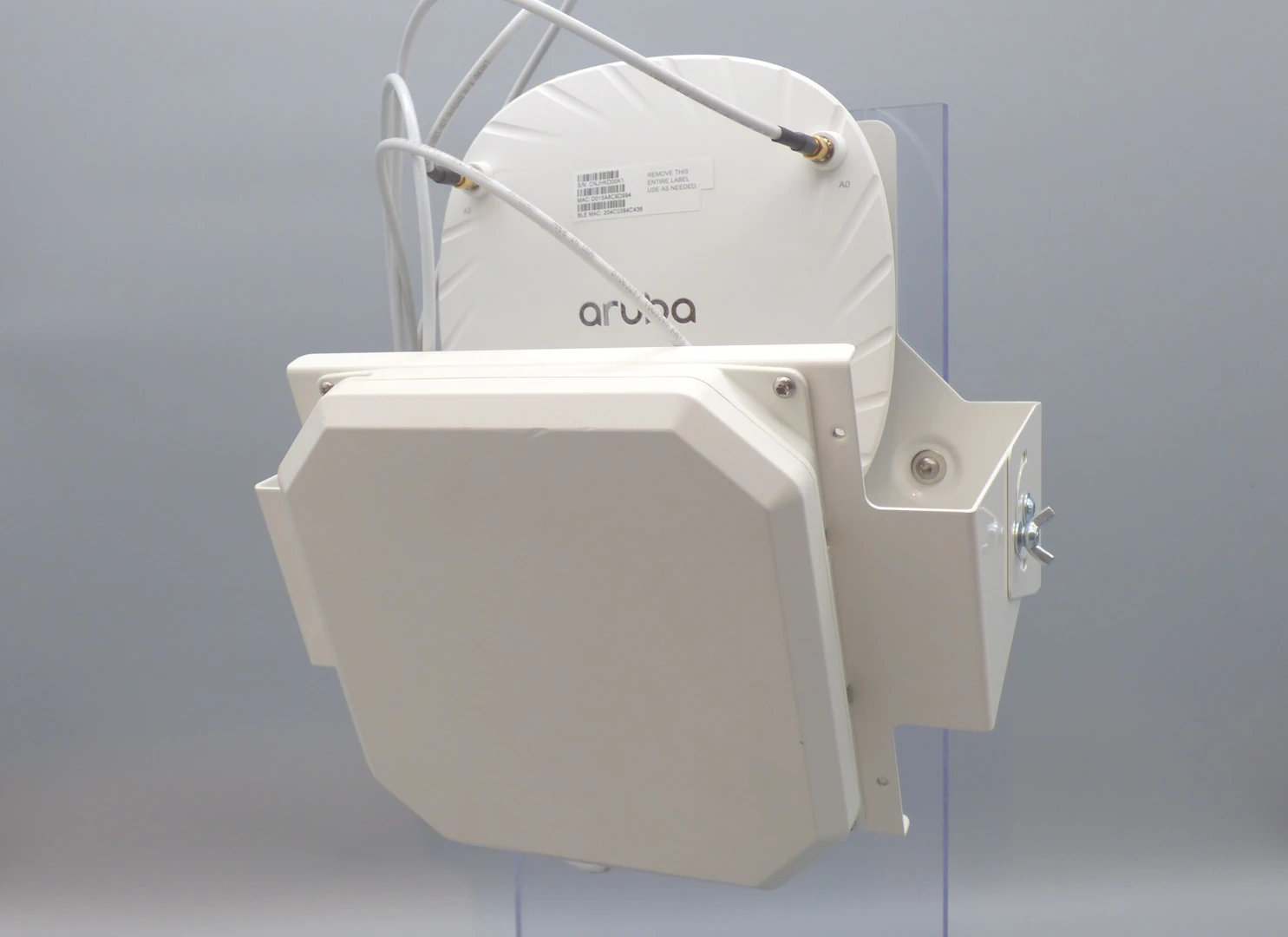

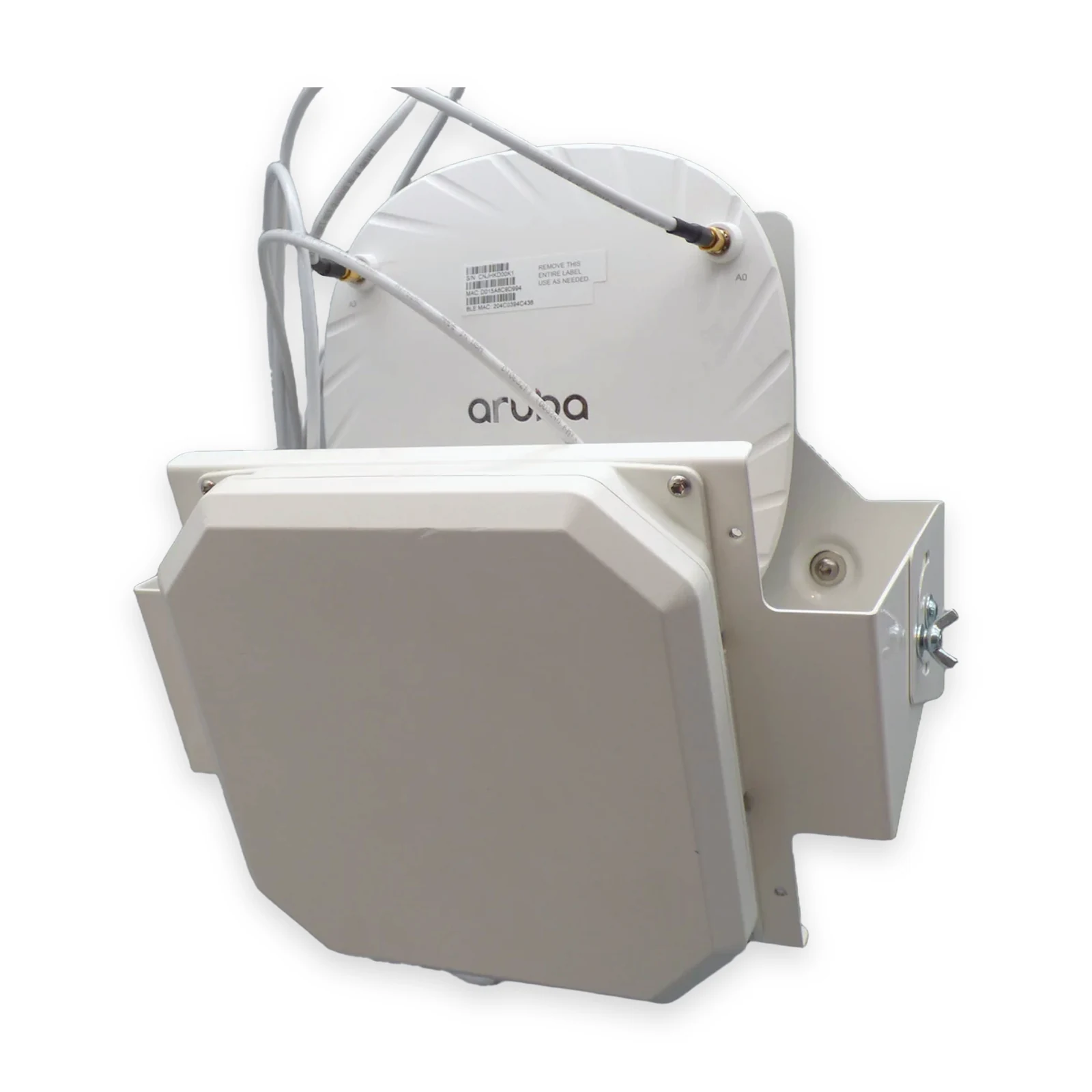

Made in Hamburg/Germany The combined mount for Aruba Access Points and patch antennas enables space-saving installation of Aruba Access Points with external patch antennas on walls or ceilings. The antenna is attached to the front section and – together with the front – can be tilted approx. ±15° to ±30° up or down depending on the access point in use. This saves both space and installation time, as only one mount is required for both AP and antenna. Material and color match our other indoor mounts: 1 mm zinc-plated steel, powder-coated, standard color white (RAL 9010); additional colors available upon request. The Aruba Access Point is connected to the mount using the included Arubadaptor. Cable management remains unobstructed: all edges are deburred to protect cables. For wall or ceiling installation, up to six screw points are available; typically, three screws provide sufficient support. Details Compatibility – Supported Aruba AP series: 500, 600, 700. – Supported patch antennas: AP-ANT-25A, AP-ANT-28, AP-ANT-35A, AP-ANT-38, AP-ANT-45, AP-ANT-48 as well as newer antennas with identical mounting hole dimensions. – AP attachment is done using the Arubadaptor (included). Mechanics & Dimensions – Dimensions of the mount: W 290 mm × H 280 mm × D 121 mm. – Note: Height and depth vary depending on the tilt angle and AP model. – Tilt range (front/antenna): depending on AP, approx. ±15° to ±30°. – Mounting points: wall/ceiling with up to 6 screws; typically 3 screws are sufficient. – Cable management: unobstructed; deburred edges protect cables. Material & Finish – 1 mm zinc-plated steel, powder-coated. – Standard color white (RAL 9010); other colors available on request. These material and color specifications match our other mounts for a consistent visual appearance. Installation & Use – Installation on walls or ceilings; the front section with antenna is tiltable (see tilt range). – Designed for indoor use. Important Notes – Before installation, verify the AP series and mounting hole dimensions of the patch antenna. – Use the Arubadaptor to connect the AP to the mount. Advantages at a Glance Combined installation of Aruba AP and patch antenna – saves space and installation time Tiltable front with antenna: depending on AP approx. ±15° to ±30° Clean cable management thanks to deburred edges Stable wall/ceiling installation (up to 6 screws; typically 3 are sufficient) 1 mm zinc-plated steel, powder-coated; standard color RAL 9010, other colors on request Technical Overview Feature Description Note Ensure antenna compatibility via mounting hole dimensions; AP installation requires the included Arubadaptor. Product Combined mount for Aruba Access Points and patch antennas (CM-APANT-A-3) Compatible AP series Aruba 500, 600, 700 series Compatible antennas AP-ANT-25A, AP-ANT-28, AP-ANT-35A, AP-ANT-38, AP-ANT-45, AP-ANT-48 and newer models with identical mounting hole dimensions Dimensions (mount) W 290 mm × H 280 mm × D 121 mm (H/D depend on tilt angle & AP) Tilt range (front) Depending on AP approx. ±15° to ±30° Material / finish 1 mm zinc-plated steel, powder-coated; standard color white (RAL 9010), other colors on request Installation Wall/ceiling; up to 6 screws, typically 3 screws sufficient Cable management Unobstructed; deburred edges protect cables AP attachment Using the included Arubadaptor Use case Indoor use (according to AP/antenna approvals) Scope of delivery Front & rear mounts (CM-APANT-A-3), 2× M6 screws, 2× wing screws, 4× M4 screws for antenna, Arubadaptor Conclusion The combined mount for Aruba consolidates AP and patch antenna installation into a single solution, saving space and time while offering flexible alignment thanks to the tiltable front. With clearly defined compatibility, the included Arubadaptor and a robust RAL 9010 finish, it provides a precise, practical indoor mounting solution. Scope of Delivery – Front mount (CM-APANT-A-3) – Rear mount (CM-APANT-A-3) – 2× M6 screw – 2× wing screw for fixing – 4× M4 screw for antenna installation – Arubadaptor Downloads datasheet DE
