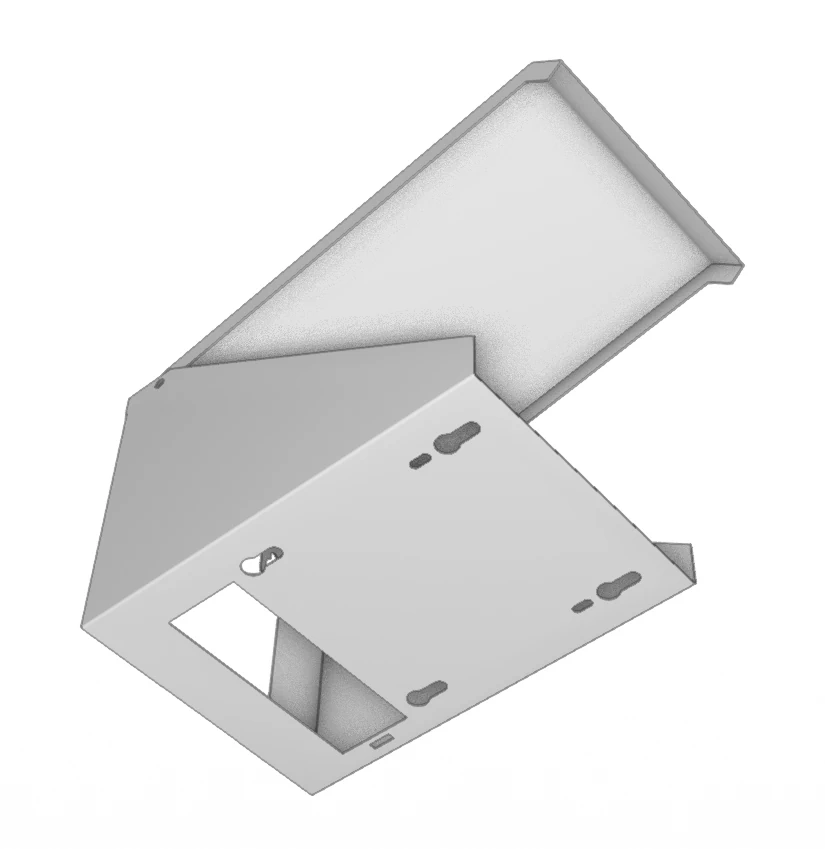

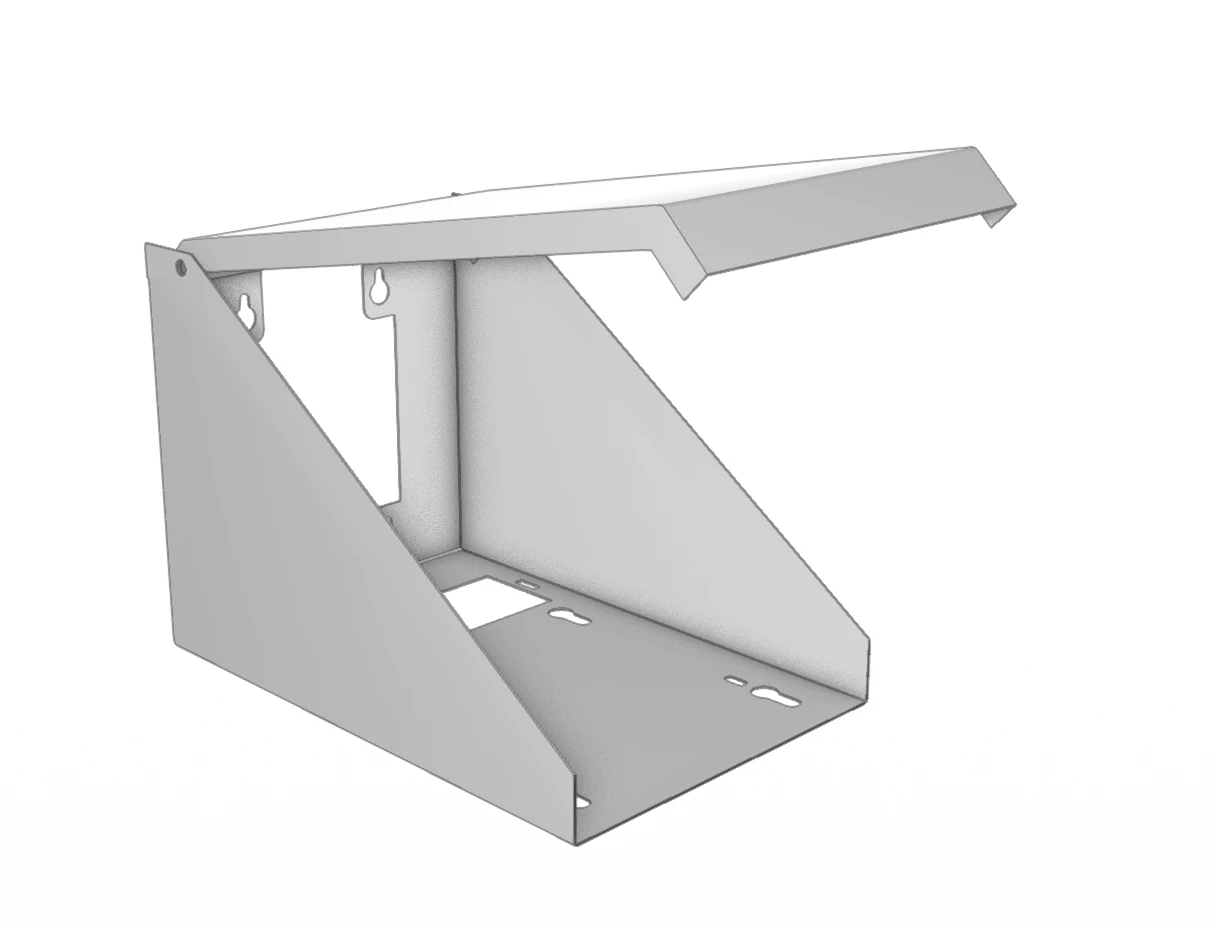

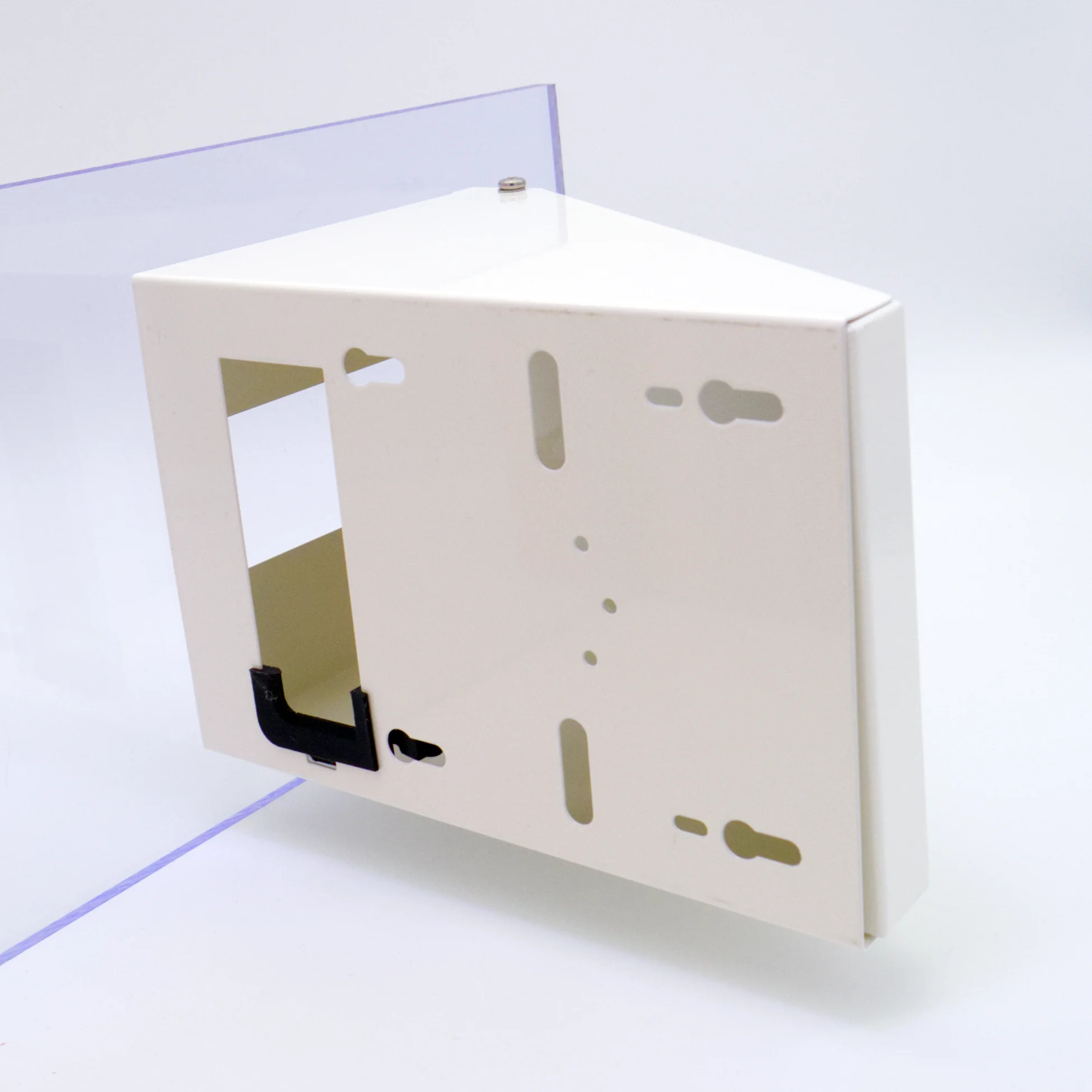

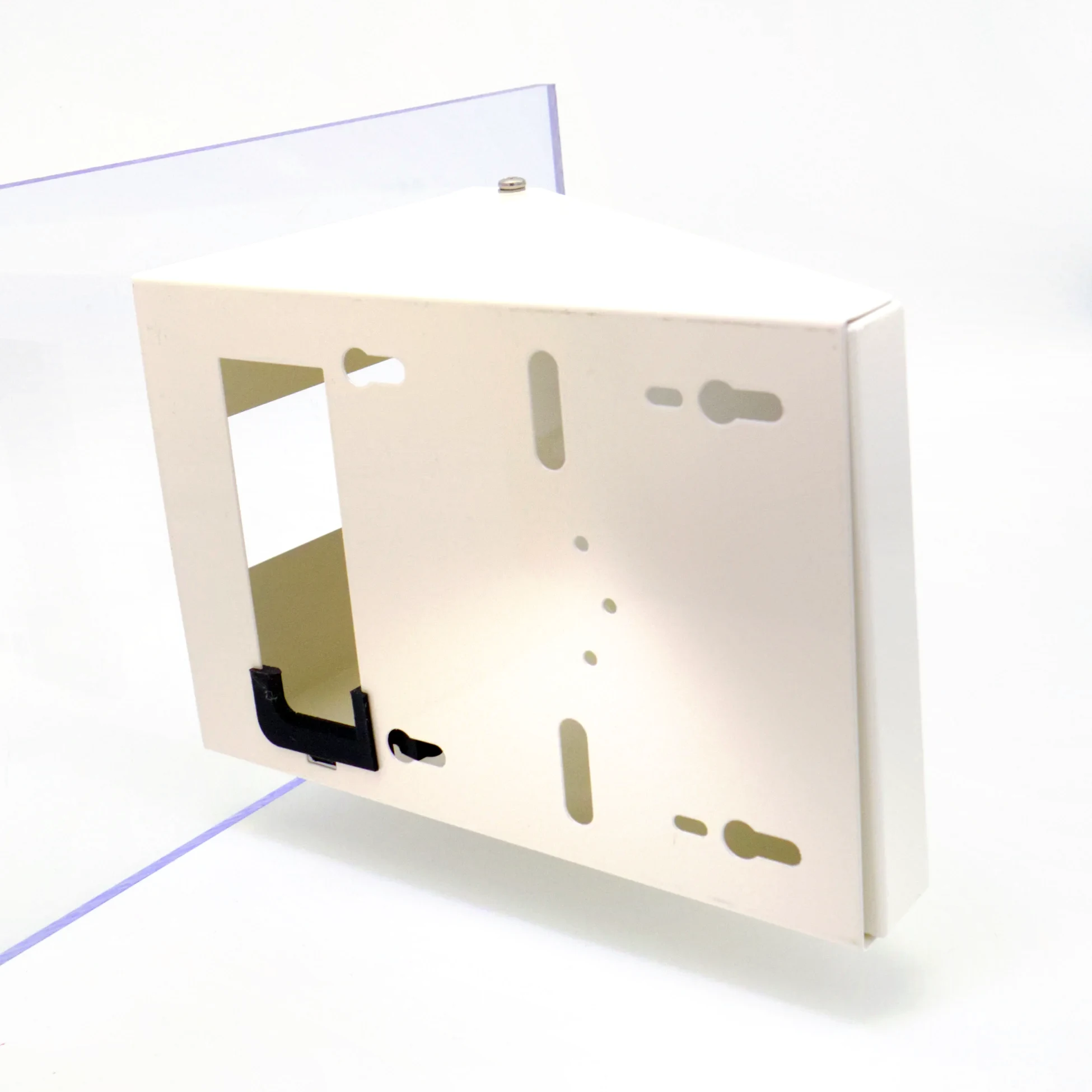

Horizontal Wall Mount V3 for Cisco Access Points

Made in Hamburg/Germany

The Horizontal Wall Mount V3 for Cisco Access Points is a robust, precisely engineered solution for horizontal wall installation of enterprise access points. The revised V3 design uses an accurate mounting pattern for fast, secure installation while providing a clean, professional appearance in offices, schools, hotels and industrial environments.

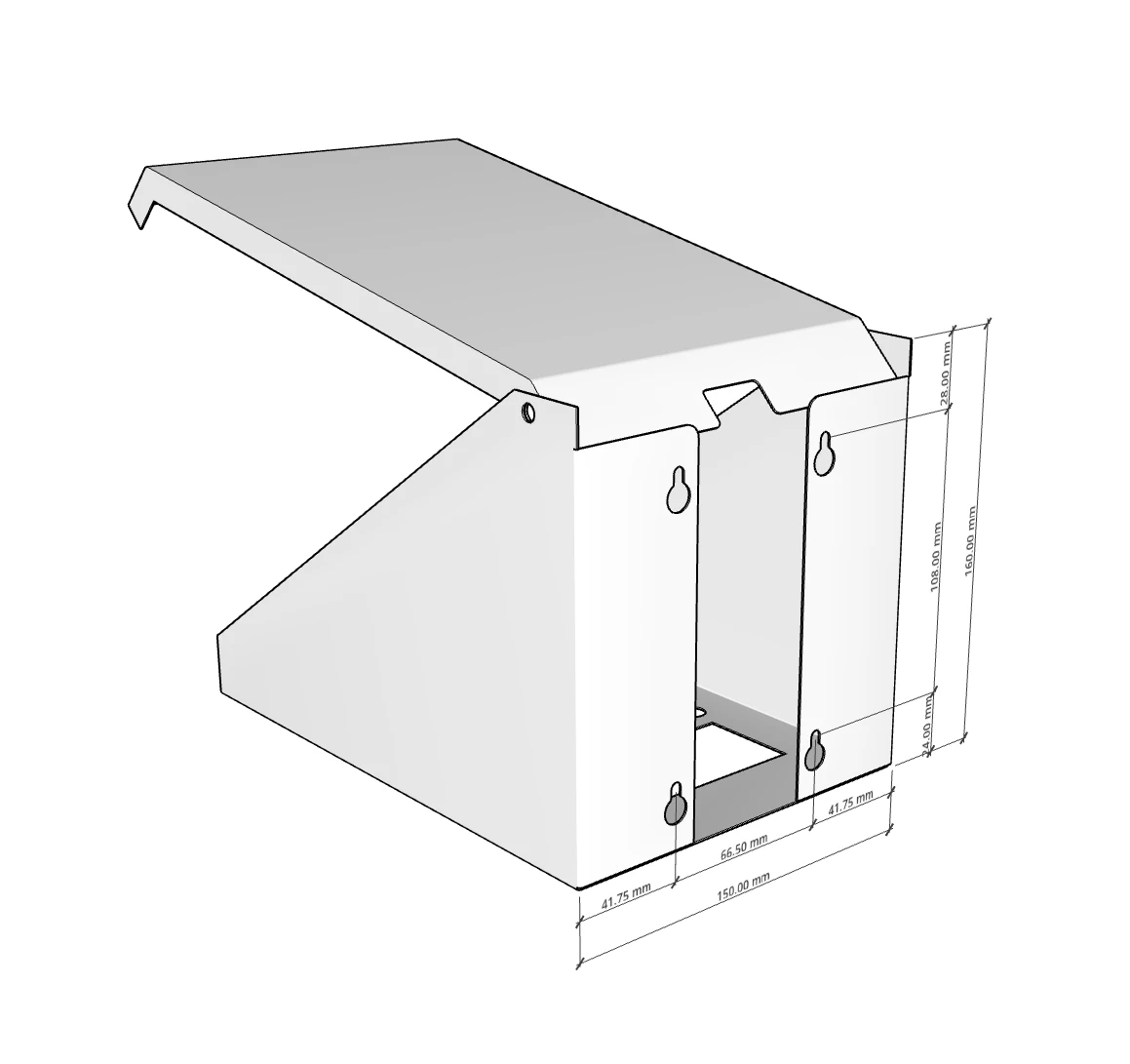

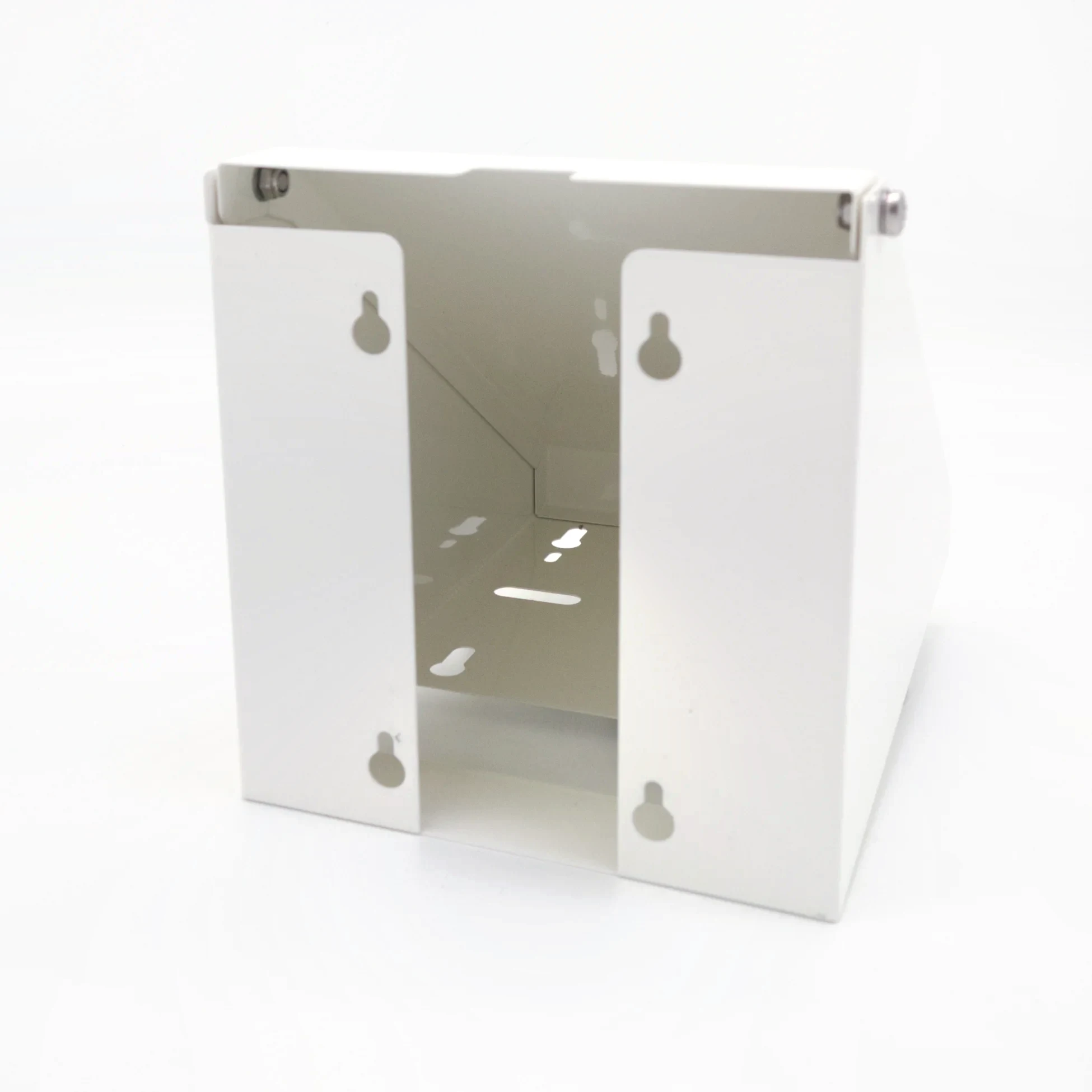

The improved Version 3 mount features precisely positioned mounting holes that match Cisco’s original layout exactly. This alignment enables effortless installation, as the mount fits seamlessly into existing mounting points. Because of this compatibility, the mount can be swapped in place of the original hardware without additional adjustments. This saves installation time and cost when replacing existing mounts.

Details

The mount allows flat, horizontally oriented wall installation of the access point. This preserves the antenna characteristics and ensures predictable, reproducible RF coverage. Its solid, powder-coated metal chassis is built for long-term use and supports fast device replacement without special tools.

Benefits & Features

• Version 3: optimized, precise mounting pattern for enterprise APs
• Horizontal wall installation for predictable RF coverage
• Durable metal construction (powder-coated) for continuous operation

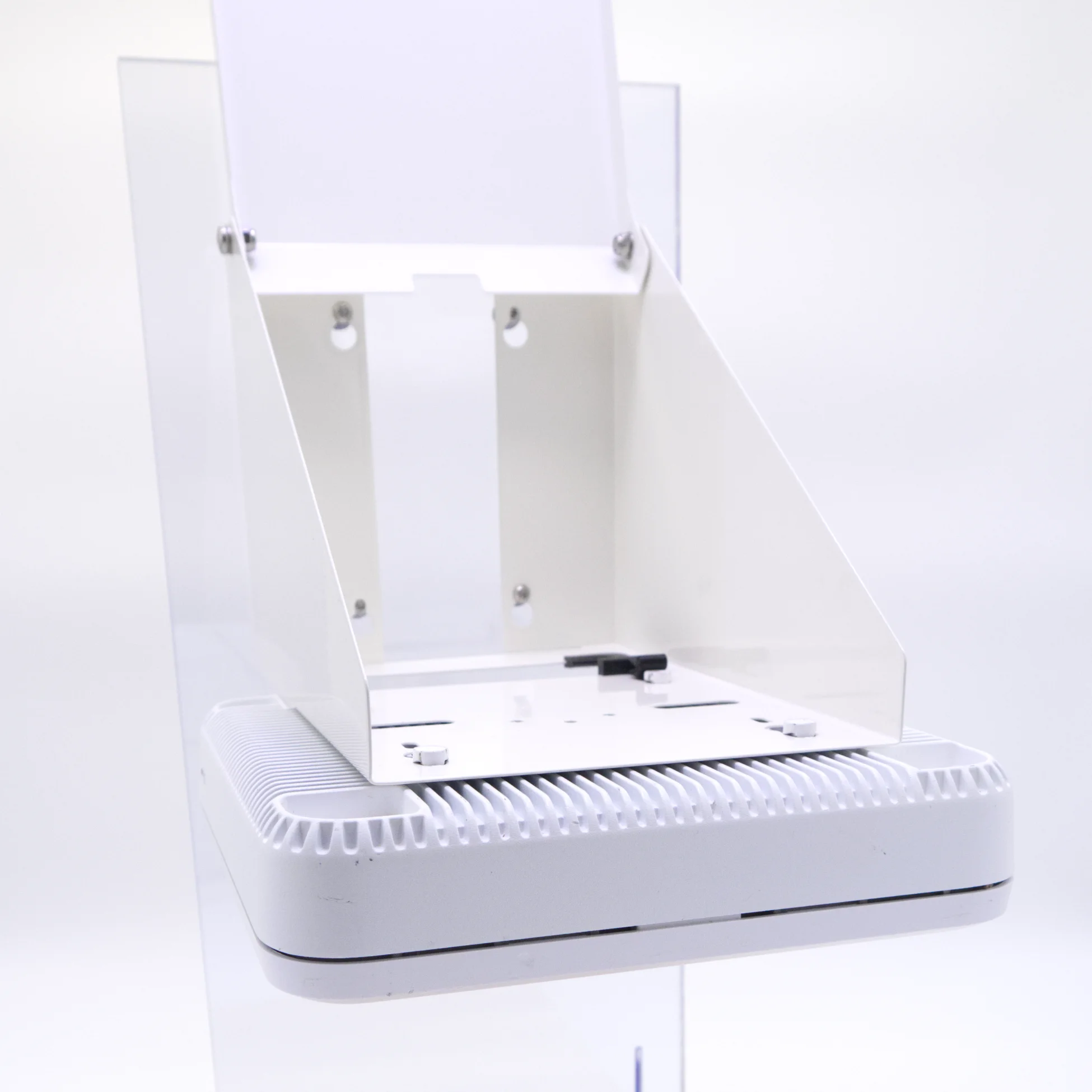

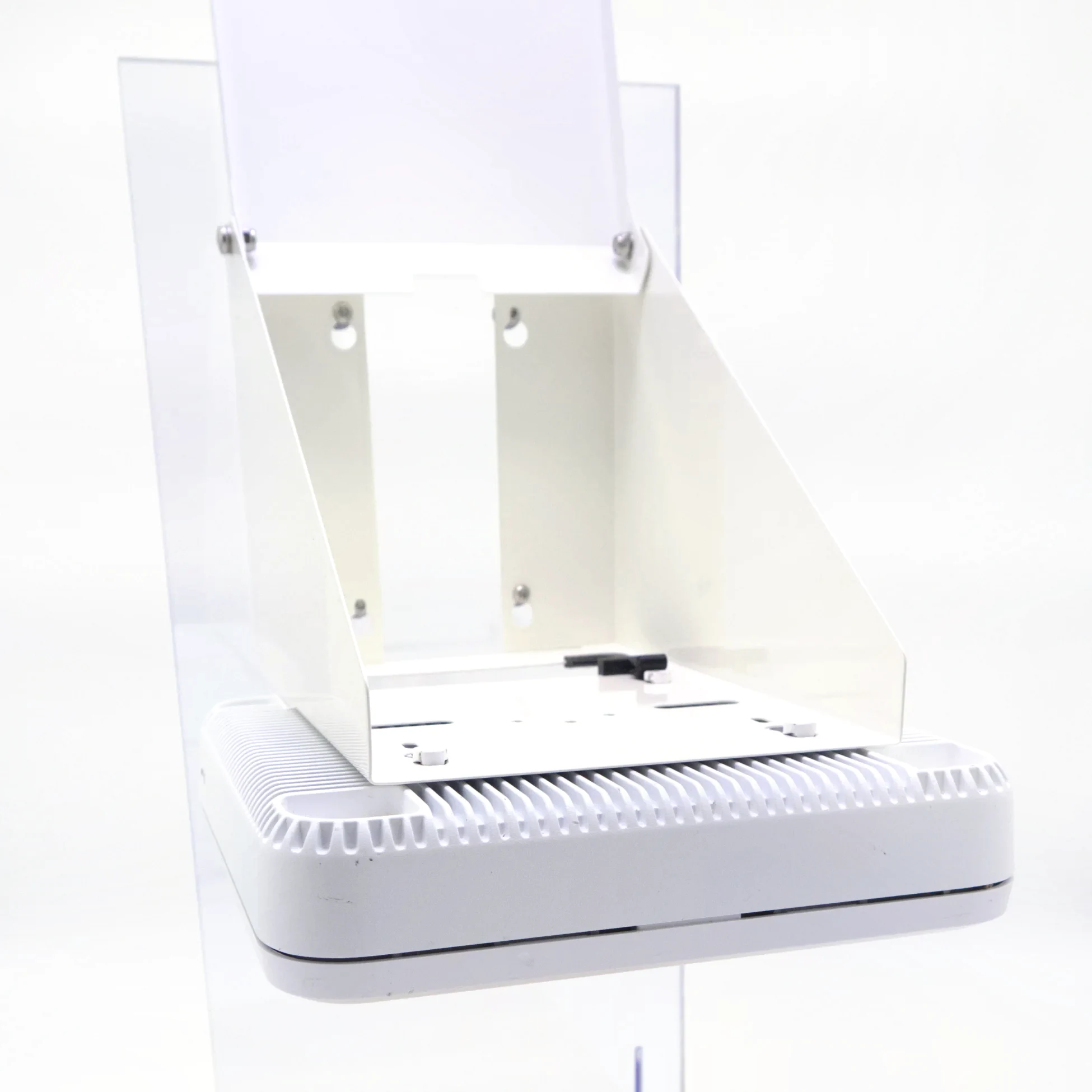

• Fast installation: mount the base, insert the AP, close the cover
• Clean appearance – ideal for visible and public areas

Compatibility

• Cisco (excluding Meraki): compatible with all current and past Cisco Enterprise Access Points using the standard mounting pattern (including older series such as 3800/3700/3600/3500/2800/2700/2600/1600/1260/1140/1040 as well as newer generations).
• Juniper / Mist: compatible with current and previous Mist Access Points using the matching hole pattern (e.g. AP34, AP41, AP43, AP45 and newer models).
• Aruba: compatible with the 500, 600 and 700 series when used with the Arubadaptor V2 or Arubadaptor QC.

Note: Meraki models are not compatible.

Use Cases

• Wi-Fi installations in offices, hospitals, schools, hotels and more
• Upgrades and conversions to horizontal wall mounting
• Uniform appearance in visible and representative areas

Technical Notes

• Mounting type: horizontal wall mount
• Material: metal, powder-coated
• Color: white (RAL 9010); additional colors available on request

With the CM-WALL-C-3, you are choosing a durable, installation-friendly mount that positions enterprise access points securely and elegantly on the wall—compatible with Cisco (excluding Meraki), Juniper/Mist, and with adapter support also for Aruba.

Scope of Delivery

• Lower mount (CM-WALL-C-3)
• Upper cover mount (CM-WALL-C-3)
